Outdoor Barrel Sauna Kit: Stave Engineering, Heater Sizing & DIY Assembly Guide

In residential backyard retreats, boutique glamping resorts, and rural wellness properties, the demand for pre-cut outdoor saunas has grown rapidly. Homeowners and facility directors want the physiological benefits of authentic 195°F heat therapy without the high cost and logistical disruption of hiring an on-site framing crew to build a custom rectangular structure from scratch. The solution that balances fast DIY assembly with architectural beauty is specifying a dedicated outdoor barrel sauna kit.

However, assembling a circular, multi-stave wooden structure that withstands shifting exterior climates requires careful mechanical and material planning. A barrel sauna is held together without exterior wall studs or roof trusses; it relies on interlocking ball-and-socket wood staves under tension from heavy stainless steel compression bands. If an installer chooses the wrong timber species for wet northern winters, neglects foundation cradle drainage, or miscalculates electric heater circuit sizing, what seemed like an easy weekend DIY kit can lead to chronic roof water leaks, warped staves, and tripped breakers. Here is the field-tested engineering guide contractors, designers, and buyers need to evaluate Western Red Cedar versus ThermoWood staves, porch clearances, heater sizing, and foundation pads before ordering.

Ball-and-Socket Joinery & Tension Band Mechanics: How Barrel Kits Stay Watertight

The core structural engineering behind an outdoor barrel sauna kit is ball-and-socket profile milling. Rather than standard flat tongue-and-groove lumber used in interior wall paneling, barrel staves feature a precision-machined convex radius on one edge and a matching concave groove on the other.

This circular interlocking profile allows adjacent staves to pivot at slight angles around the circumference, forming a rigid, interlocking cylindrical arch:

• Continuous Tension Compression: Barrel saunas are held together without interior nails piercing the curved roof. Heavy 304 marine-grade stainless steel bands encircle the cylinder. When the threaded tensioning rods are torqued down, the bands exert continuous radial compression, pulling every stave tightly against its neighbor to form a structural water-resistant barrier.
• Seasonal Wood Movement Accommodation: Wood is a hygroscopic material that naturally swells in humid rainy seasons and shrinks during dry summer heat waves. The ball-and-socket joint allows timber to expand and contract circumferentially without cracking or pulling seams apart. Quality kits feature accessible dual-nut tensioning brackets so owners can adjust band tension seasonally in under two minutes.
• Cradle Foundation Support: The entire weight of the barrel rests on pre-shaped polymer or treated timber support cradles. The cradles lift the lowest wood staves off wet ground, ensuring base weep areas stay dry and preventing bottom wood rot.

Timber Physics: Thermally Modified Spruce (ThermoWood) vs. Western Red Cedar

Because an outdoor barrel sauna sits in direct contact with rain, snow, UV sunlight, and freezing temperatures on the outside while enduring 195°F dry heat on the inside, timber selection dictates the lifespan of the entire investment. Choosing knotty green pine or cheap unseasoned lumber results in warped roof staves, boiling sap pockets that drip onto bathers, and loose compression bands.

Two premium timber species dominate quality outdoor barrel builds:

For buyers evaluating solid timber tubs or hybrid plunge vessels, compare timber maintenance protocols in our guide on cedar cold plunge tub maintenance, or review indoor timber species comparisons in our report on a 1 person traditional sauna.

Heater Sizing & Power Distribution: 6.0 kW to 9.0 kW Electric Loads

Heating an outdoor barrel sauna requires significantly more power than heating an indoor cabin of identical cubic volume. An indoor sauna operates in a conditioned 70°F room with insulated drywall. An outdoor barrel sauna sits in direct contact with cold ambient wind, snow, and freezing weather, with only 1.5 inches of solid wood staves separating 195°F air from sub-freezing exterior temperatures.

Contractors size electric heaters based on climate extremes and cabin cubic volume:

• The 6.0 kW Standard (4-Person 6ft x 6ft Barrel): A typical 4-person barrel holds roughly 130 to 150 cubic feet of interior volume. A 6.0 kW electric stove draws 25 amps at 240 volts, requiring a dedicated 2-pole 30A circuit breaker pulled with 10 AWG copper wire. This achieves 190°F heat in roughly 40 to 50 minutes during moderate spring and autumn weather.
• The 8.0 kW to 9.0 kW Heavy-Duty Requirement (Northern Winter Climates): If you live in northern zones where outdoor winter temperatures drop below 20°F (-7°C), a 6.0 kW stove will struggle to exceed 165°F due to continuous exterior convective heat loss. Upgrading to an 8.0 kW or 9.0 kW heater draws 33 to 38 amps, requiring a dedicated 50A breaker with 8 AWG copper wire to guarantee rapid 35-minute warmups to 200°F even during freezing blizzards.
• Wood-Burning Alternative (Zero Electrical Demand): For remote, off-grid cabins or properties where upgrading main electrical panel service is cost-prohibitive, wood-burning stove kits eliminate electrical requirements entirely. To review chimney flashing and hearth safety for wood-fired barrels, see our detailed guide on a barrel sauna wood burning installation.

For commercial facilities planning combined contrast suites with saunas and plunge tubs, review power coordinating guidelines in our report on a sauna and cold plunge for gym setup.

Foundation Preparation & Weatherproofing Overhangs

An assembled 6-person barrel sauna weighs roughly 1,200 to 1,600 pounds dry, and over 2,200 pounds when occupied by six adults. Placing this load directly on wet grass or uncompacted dirt causes the support cradles to settle unevenly within months, racking the circular frame and binding the glass door.

Contractors recommend three foundation standards:

• Crushed Angular Gravel Bed (Optimal Drainage): Excavate 4 to 6 inches of topsoil, lay commercial geotextile weed barrier fabric, and compact 3/4-inch angular crushed stone. Gravel drains rainwater and splash runoff away from bottom staves instantly.
• Reinforced Concrete Patio Slab: A 4-inch 3,000 PSI concrete pad provides a permanent, dead-level foundation that will never shift or sink over decades of use.

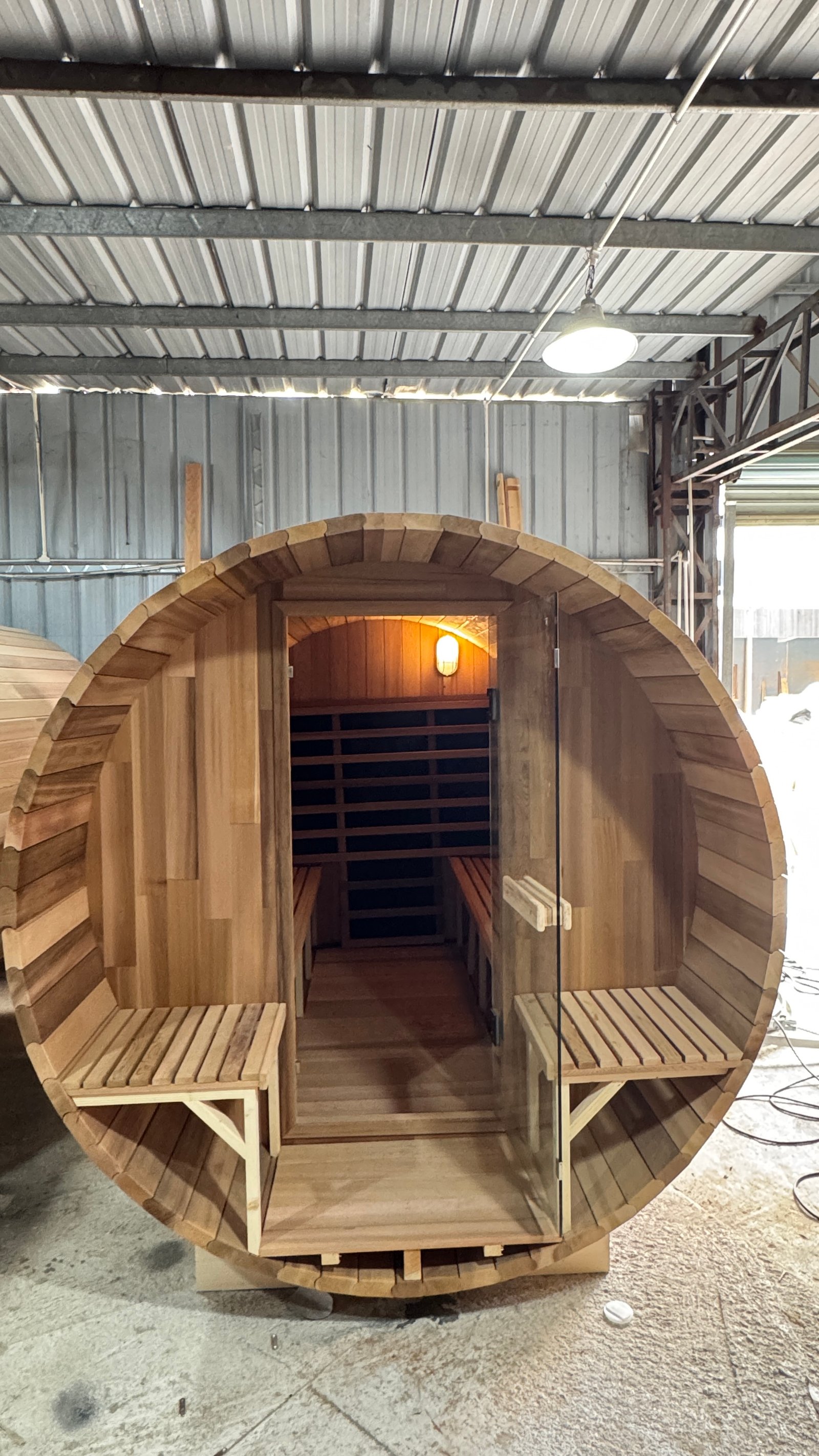

• Front Porch Weather Canopy: Opt for barrel models featuring an extended 18- to 24-inch front porch overhang with built-in exterior cooling benches. The overhang shields the entrance door from direct driving rain and provides a dry transition area for shoes and towels.

Roof Weather Protection: Bitumen Shingles & UV Stave Care

While solid Western Red Cedar and ThermoWood resist wood rot naturally, the upper 180-degree arch of an outdoor barrel sauna acts like a roof, bearing the full brunt of vertical rain, snowpack, and solar UV radiation. Over multiple seasons, water pooling in top stave joints or intense sunlight baking raw wood fibers accelerates surface checking.

Contractors recommend two protective weathering treatments during assembly:

• Weather-Resistant Bitumen Shingle Roof Canopy: Installing flexible hexagonal or architectural bitumen shingles over the upper half of the barrel creates an impenetrable water-shedding shield. Rainwater rolls off the shingles and drips away from the sides, keeping top stave joints bone dry and extending roof lifespan significantly.
• Breathable Penetrating UV Oil Finish: Apply an exterior breathable, non-film-forming penetrating wood oil (such as clear tung oil or specialized UV-inhibiting timber sealers) to exterior staves once annually. Never coat exterior barrel staves with impermeable polyurethane varnish or latex paint, which traps internal moisture and causes blistered, peeling finishes.
• Seasonal Stainless Band Adjustments: Wood naturally swells in wet winter seasons and contracts during dry summer months. Inspect the dual-nut tensioning rods on the 304 stainless steel compression bands twice a year, loosening or tightening by half a turn to maintain uniform radial pressure without crushing wood fibers.

Assembly Timeframes & DIY Tool Requirements

A pre-cut outdoor barrel sauna kit is engineered for modular field assembly. Two reasonably handy adults can fully erect a 4-person to 6-person barrel cabin in roughly six to eight hours without specialized timber framing machinery.

The installation workflow requires only standard household carpentry tools:

• Rubber Mallet & Impact Driver: A dead-blow rubber mallet is essential for tapping tongue-and-groove staves into ball-and-socket channels without bruising the timber edges. An impact driver handles structural screws for bench brackets and support cradle leveling.
• 4-Foot Spirit Level: Ensuring the base support cradles are dead-level before laying the first stave prevents the entire cylindrical frame from racking, ensuring the front glass door seals flush against magnetic latches.
• Ratchet Wrench for Band Torquing: A deep socket ratchet wrench torques the stainless steel compression bands evenly around the barrel circumference, pulling the circular stave arch into continuous tension.

Pairing Barrel Saunas with Cold Plunge Contrast Recovery

In modern athletic recovery and boutique wellness retreats, an outdoor barrel sauna reaches its peak therapeutic efficacy when paired with an adjacent cold plunge tub. Transitioning between a 195°F wood-fired or electric barrel sauna and a 39°F cold plunge stimulates rapid vascular flushing, reduces delayed-onset muscle soreness, and sharpens mental focus.

When designing an outdoor contrast recovery patio:

• Non-Slip Walkway Spacing: Maintain at least 5 to 6 feet of textured, slip-resistant decking between the sauna door and the plunge tub edge to ensure safe foot traffic.
• Dedicated Outdoor Chiller Hardware: Outdoor cold plunge vessels require heavy-duty weather-rated chillers capable of holding 39°F water under shifting exterior sunlight and ambient heat. Review our engineering specifications on an outdoor chiller unit for cold plunge setups, or explore commercial duty cycles in our guide on a commercial cold plunge chiller.
• Turnkey Self-Contained Tubs: For facilities seeking streamlined setups with no loose exterior hoses, compare integrated equipment in our analysis of an all in one ice bath for gym use.

For commercial bather safety and public water sanitation regulations, consult official CDC Healthy Swimming operating standards and federal Pool Safely guidelines.

Factory-Direct Outdoor Barrel Sauna Kits from OMNI Ice

At OMNI Ice, we manufacture precision pre-cut outdoor barrel sauna kits, commercial cold plunge tubs, and high-efficiency water chillers for wellness resorts, fitness centers, and residential clients worldwide. By buying direct from our factory, you avoid importer markups and receive CNC-precision hardware designed for rapid field assembly:

The Buyer Pre-Assembly Checklist for Barrel Sauna Kits

Before uncrating your outdoor barrel sauna kit, verify these critical engineering checkpoints:

1. Foundation Leveling Verified: Ensure the gravel bed or concrete slab is dead-level across the cradle points to prevent cylindrical frame racking.
2. Dedicated Power Drop Installed: Coordinate with an electrician to pull a dedicated 240V / 30A (for 6kW) or 50A (for 8kW+) electrical line to the outdoor equipment disconnect.
3. Timber Acclimation: Allow timber staves to acclimate to local outdoor ambient humidity for 48 hours prior to band tightening.
4. Stainless Band Tensioning: Torque stainless compression bands evenly, ensuring uniform gap closure around the full stave radius.
5. Roof Bitumen Shingle Protection: Install exterior asphalt bitumen roof shingles over the upper 180 degrees of the barrel to shield top staves from persistent pooling rain and snowmelt.

When engineered with precision ball-and-socket joinery, weather-resistant timber, and proper electric power sizing, an outdoor barrel sauna kit transforms any backyard or commercial patio into a world-class thermal recovery retreat that delivers authentic Finnish steam rituals for decades to come.
