Configuration Before Quotation
Confirm voltage, cooling requirements, product options, and target use before selecting a model.
ProValue CH-08 0.8HP Ice Bath Chiller for Cold Plunge Tubs
The ProValue CH-08 ice bath chiller is a compact 0.8HP cooling-only system with 3–35°C temperature control, R32 refrigerant, a built-in self-priming circulation pump, an installed external filter, and quick connectors. Select CH-08-RV for 110–120V / 60Hz markets or CH-08-RW for 220–240V / 50Hz markets.
0.8HP cooling with 3–35°C temperature control.
2.04kW RV or 1.63kW RW cooling capacity.
Built-in self-priming circulation system.
External filter and quick water connectors.
Send your country, voltage, tub capacity, insulation, target temperature, quantity, and buyer type before quotation.
PRODUCT SNAPSHOT
Key Product Snapshot Before Quotation
Compare the product type, main use, construction, and available project support at a glance.
Cooling System
0.8HP / 2.04kW RV / 1.63kW RW
Temperature Range
3°C to 35°C adjustable
Water Circulation
Built-in self-priming pump
Maintenance
External filter and quick connectors
PRODUCT CONCEPT
Product Positioning and Use Case
Understand who this product is designed for and the practical reasons to include it in a project or catalog.
ProValue Cooling for Compact Ice Bath Projects
The ProValue CH-08 ice bath chiller combines 0.8HP cooling, 3–35°C temperature control, self-priming circulation, an external filter, and quick connectors in a compact cooling-only cabinet.
- RV version for 110–120V / 60Hz markets.
- RW version for 220–240V / 50Hz markets.
- R32 refrigerant with version-specific charge.
- Designed for matched cold plunge systems up to 300L.
PRODUCT DETAILS
Product Details and Configuration Notes
Review the construction, operation, configuration options, and sourcing information needed before quotation.
The ProValue CH-08 ice bath chiller is designed for buyers who need reliable cold-water control without the cost and complexity of a larger heating-and-cooling system. This 0.8HP cooling-only unit supports an adjustable 3–35°C water-temperature range for home cold plunge tubs, fitness recovery areas, clinics, studios, and compact commercial projects.
Unlike smart models with WiFi, ozone, or heating, this ice bath chiller focuses on the core operating requirements: compressor cooling, a built-in self-priming circulation pump, an installed external filter, and quick water connectors. The simpler configuration makes specification, installation, and routine maintenance easier for appropriate projects.
Two Electrical Versions
The ProValue ice bath chiller is available as CH-08-RV and CH-08-RW. Confirm the destination country and site power before quotation so the correct voltage, frequency, plug, cable, refrigerant charge, and electrical protection requirements can be selected.
| Item | CH-08-RV | CH-08-RW |
|---|---|---|
| Input Voltage | 110–120V / 60Hz | 220–240V / 50Hz |
| Cooling Input Power | 1.04kW | 0.99kW |
| Compressor Power | 0.930kW | 0.884kW |
| Cooling Capacity | 2.04kW | 1.63kW |
| COP | 1.96 | 1.65 |
| R32 Charge | 210g | 190g |
| Net Weight | 26.1kg | 25.5kg |
0.8HP Cooling for Compact Cold Plunge Systems
The CH-08-RV provides 2.04kW cooling capacity, while the CH-08-RW provides 1.63kW. Both versions use a 0.8HP compressor platform and allow the selected ice bath chiller to regulate water from 3°C to 35°C.
The current product page references matched systems up to 300L and cooling to 3°C in approximately four hours. Treat this as a reference condition rather than a universal guarantee. Actual performance depends on usable water volume, starting temperature, tub insulation, ambient temperature, ventilation, hose routing, circulation, cover use, and operating time.
Built-In Self-Priming Circulation
The integrated self-priming system supports water movement between the tub and ice bath chiller. Quick connectors help organize the inlet and outlet plumbing and simplify disconnection for service.
- Built-in self-priming circulation system.
- Quick connectors supplied for compatible plumbing.
- No separate WiFi controller or remote-control system.
- No heating function or ozone generator.
External Filter for Accessible Maintenance
An installed external filter keeps routine filter access outside the chiller cabinet. The current product guidance suggests checking or replacing the filter around every three months, but the actual interval depends on water condition, hair and debris load, usage frequency, and local maintenance procedures.
The filter does not replace proper water care. Plan routine cleaning, filter inspection, drainage, water replacement, and any required sanitation method for the specific ice bath chiller installation.
Compact Fixed Cabinet
The cabinet measures 454 × 385 × 367mm. Net weight is 26.1kg for CH-08-RV and 25.5kg for CH-08-RW. This model does not include transport wheels or a carry handle, so place it on a stable serviceable surface with suitable airflow, electrical protection, drainage planning, and maintenance clearance.
Applications
The ProValue ice bath chiller can be considered for insulated inflatable tubs, acrylic tubs, fiberglass tubs, compact barrel tubs, home recovery rooms, training facilities, clinics, and wellness studios after project matching. It is intended for cooling-only requirements where 3°C is sufficient and heating or app control is not required.
Information Required Before Quotation
Send the destination country, voltage, tub material, usable water volume, insulation, starting and target temperatures, ambient conditions, inlet and outlet sizes, daily use pattern, quantity, accessories, and OEM requirements. OMNI will confirm whether CH-08-RV or CH-08-RW is the appropriate ice bath chiller configuration.
Key Features That Support Buying Decisions
See the product functions, materials, and project support that matter before quotation.
0.8HP Cooling with RV and RW Versions
The ProValue ice bath chiller provides 3–35°C adjustable cooling with 2.04kW capacity for CH-08-RV and 1.63kW for CH-08-RW.
- Cooling-only design without heating.
- R32 refrigerant with version-specific charge.
- Actual cooling results depend on the matched tub and operating conditions.
Accessible External Water Filter
The installed external filter supports routine maintenance without opening the main chiller cabinet.
- Inspect the cartridge according to water condition and usage.
- Replace when flow, cleanliness, or the maintenance schedule requires it.
- Continue normal cleaning and water-care procedures.
Self-Priming Pump and Quick Installation
The ice bath chiller includes a self-priming circulation system and quick connectors for an organized tub-to-chiller water loop.
- Integrated circulation reduces the number of separate modules.
- Quick connectors simplify compatible inlet and outlet plumbing.
- Confirm hoses, fittings, and tub ports before quotation.
SPECIFICATIONS
Product Specifications
Review the configuration, dimensions, materials, and technical details for this product.
| Specification | CH-08-RV | CH-08-RW |
|---|---|---|
| Product Type | 0.8HP ice bath chiller | |
| Input Voltage | 110–120V / 60Hz | 220–240V / 50Hz |
| Cooling Input Power | 1.04kW | 0.99kW |
| Compressor Power | 0.930kW | 0.884kW |
| Compressor Class | 0.8HP | 0.8HP |
| COP | 1.96 | 1.65 |
| Cooling Capacity | 2.04kW | 1.63kW |
| Heating | No | No |
| Listed Usage Environment | 25–35°C | 25–35°C |
| Refrigerant | R32 / 210g | R32 / 190g |
| Water Temperature | 3–35°C adjustable | 3–35°C adjustable |
| Disinfection | No | No |
| Circulation Pump | Built-in self-priming system | Built-in self-priming system |
| Water Filter | Installed external | Installed external |
| Remote Control | No | No |
| Transport Wheels | No | No |
| Carry Handle | No | No |
| Quick Connectors | Yes | Yes |
| Net Weight | 26.1kg | 25.5kg |
| Product Size | 454 × 385 × 367mm | 454 × 385 × 367mm |
| Certification | Not listed | Not listed |
DETAIL IMAGES
ProValue CH-08 Construction, Controls, and Accessories
Review the compact cabinet, digital temperature controller, quick connector ports, ventilation and condenser area, external filter, hoses, and supplied connection accessories.

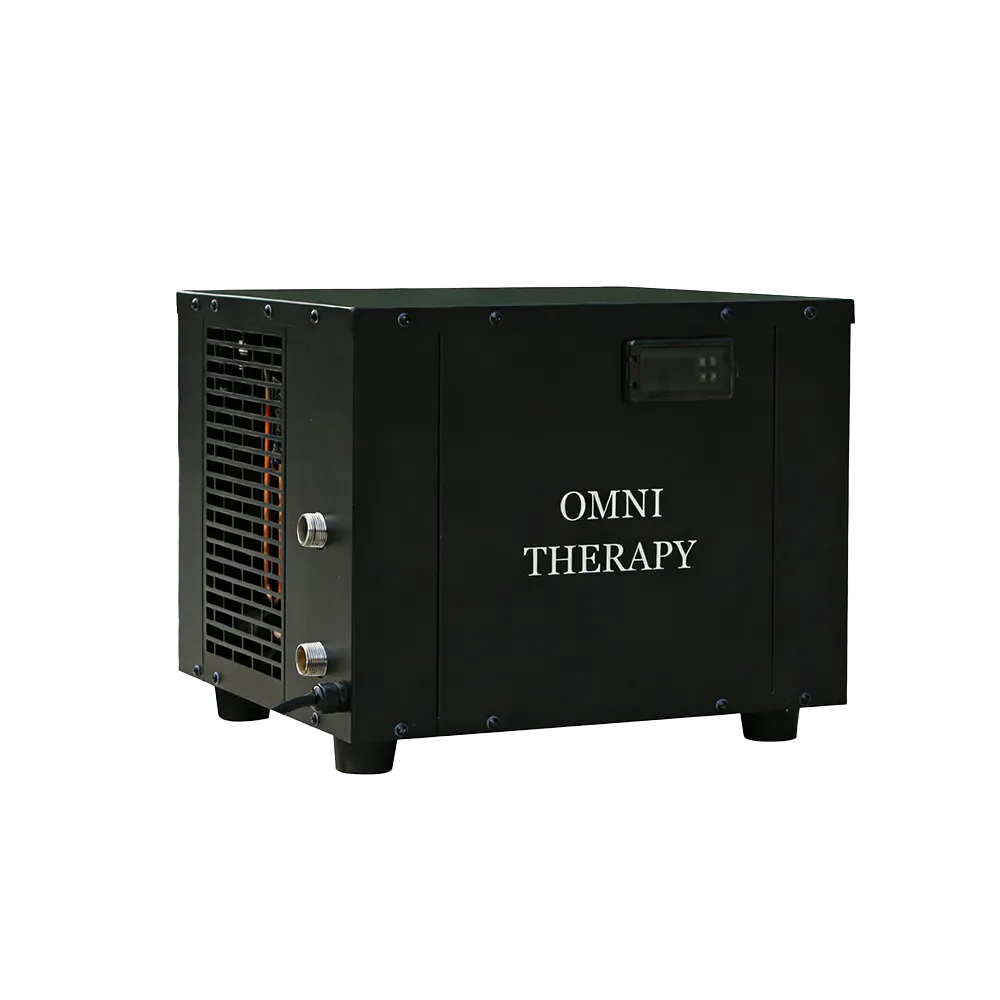

Compact CH-08 Cabinet
Three-quarter product view showing the black cabinet, condenser side, stable feet, and overall compact proportions.
Digital Temperature Controller
Close-up view of the on-machine digital controller used to manage the local cooling temperature setting.
Water Inlet and Outlet Connections
Close-up view of the water connection side for organizing the tub-to-chiller circulation loop.

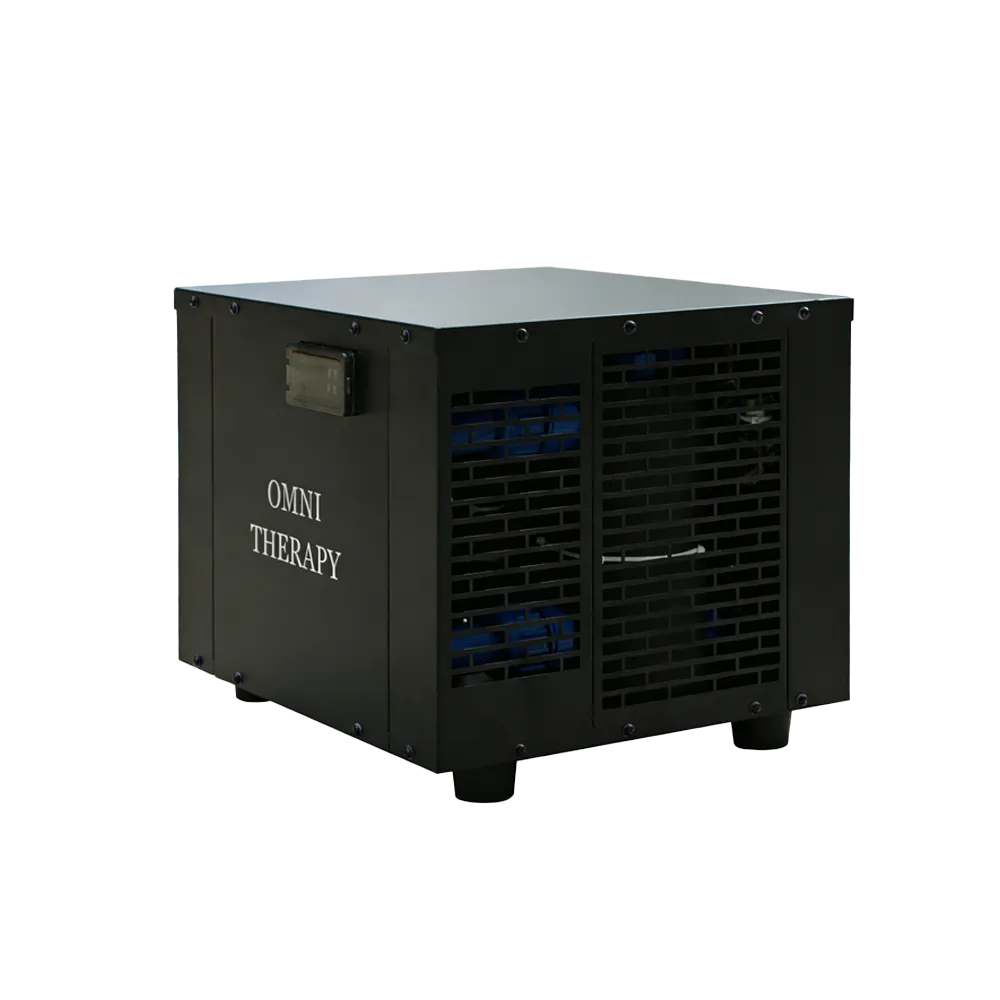

Condenser Coil and Ventilation
Detailed view of the blue condenser coil and ventilation grille used for heat rejection and airflow.
External Filter for Routine Service
External filtration arrangement designed for easier inspection and cartridge maintenance outside the cabinet.
Hoses and Connection Accessories
Accessory layout showing hoses, filter components, clamps, and quick-connection hardware for the water loop.
APPLICATIONS
Where This Product Fits
Use the ProValue ice bath chiller in residential cold plunge areas, post-training recovery spaces, clinics, studios, and compact cooling-only installations.
Home Deck Cold Plunge
Compact cooling for a round insulated tub in a private outdoor recovery area.
Alt：ProValue ice bath chiller beside round cold plunge tub on wooden deck
Post-Training Recovery
Temperature-controlled cold immersion for athletes, coaches, home gyms, and recovery routines.
Residential Wellness Setup
Cooling support for a compact home cold plunge system in an outdoor wellness setting.
OEM AND BULK ORDERS
OEM and Bulk Order Support
OMNI supports ProValue ice bath chiller sourcing for distributors, cold plunge brands, gyms, clinics, recovery studios, and commercial buyers.
- Confirm CH-08-RV or CH-08-RW voltage, plug, hoses, connectors, filter components, and accessories.
- Discuss approved logo placement, cabinet graphics, packaging, manuals, samples, and order quantities.
- Certification, warranty, delivery time, and customization must be confirmed in the final quotation and documentation.
RV/RW Voltage & Plug Configuration
Private Label, Packaging & Manuals
Samples, Bulk Orders & Export Support
FACTORY DIRECT SUPPORT
01
02
03
Request Factory Quote
Why Source From OMNI
Work directly with a manufacturer that helps buyers confirm configuration, manage production details, and prepare orders for export before production begins.
Built for B2B Supply
Support distributors, commercial projects, gyms, and private-label buyers with practical order coordination.
Export-Ready Order Support
Discuss packaging, documentation, delivery planning, and custom requirements before production.
Related products
FAQ
Questions Before Quotation
Confirm voltage, tub volume, insulation, ambient conditions, target temperature, water connections, accessories, and order requirements before selecting CH-08.
What is the difference between CH-08-RV and CH-08-RW?
CH-08-RV is for 110–120V / 60Hz markets and provides 2.04kW cooling capacity. CH-08-RW is for 220–240V / 50Hz markets and provides 1.63kW cooling capacity. The models also use different input power, COP, refrigerant charge, and net weight values.
Can this ice bath chiller cool a 300L tub to 3°C?
The current page references matched systems up to 300L and approximately four hours to reach 3°C. Actual performance depends on starting temperature, insulation, ambient conditions, plumbing, circulation, cover use, and operating time, so project conditions must be reviewed before quotation.
Does the CH-08 include a pump and filter?
Yes. The confirmed configuration includes a built-in self-priming circulation system and an installed external water filter. Confirm the cartridge, hoses, clamps, and quick connectors included in the quotation.
Does this model include heating, WiFi, or ozone?
No. CH-08-RV and CH-08-RW are cooling-only models without heating, remote control, or an ozone generator. Select another model if these functions are required.
