Configuration Before Quotation
Confirm voltage, cooling requirements, product options, and target use before selecting a model.
1HP Smart Cold Plunge Chiller System | Heating + Filtration + WiFi
The CHM-10 is a 1HP cold plunge chiller with 3–42°C temperature control, heating and cooling, ozone sanitation, external filtration, a built-in self-priming pump, quick connectors, and WiFi app control. Choose CHM-10-RV for 110–120V markets or CHM-10-RW for 220–240V markets.
Adjustable 3–42°C cooling and heating for cold plunge and contrast therapy.
Built-in ozone generator with an external replaceable water filter.
Self-priming circulation pump, quick connectors, handles, and transport wheels.
RV 110–120V and RW 220–240V versions with WiFi app control.
Send your country, voltage, tub capacity, target temperature, quantity, and OEM requirements. OMNI will confirm the suitable CHM-10 version before quotation.
PRODUCT SNAPSHOT
Key Product Snapshot Before Quotation
Compare the product type, main use, construction, and available project support at a glance.
Temperature Range
3–42°C adjustable cooling and heating
Voltage Options
RV: 110–120V / 60Hz; RW: 220–240V / 50Hz
Water Management
Ozone, external filter and self-priming circulation pump
Smart Control
Touchscreen and WiFi app for iOS and Android
PRODUCT CONCEPT
Product Positioning and Use Case
Understand who this product is designed for and the practical reasons to include it in a project or catalog.
One Chiller Platform for 110V and 220V Cold Plunge Markets
The CHM-10 is designed for brands and commercial buyers who need heating, cooling, circulation, filtration, ozone sanitation, and smart control in one compact 1HP chiller.
- CHM-10-RV supports 110–120V / 60Hz markets.
- CHM-10-RW supports 220–240V / 50Hz markets.
- Both versions provide 3–42°C temperature adjustment, WiFi control, quick connectors, and a mobile cabinet.
- Suitable for branded cold plunge packages, gyms, spas, recovery studios, distributors, and wellness projects.
PRODUCT DETAILS
Product Details and Configuration Notes
Review the construction, operation, configuration options, and sourcing information needed before quotation.
CHM-10 Smart 1HP Cold Plunge Chiller
The CHM-10 1HP cold plunge chiller combines cooling, heating, circulation, filtration, ozone sanitation, and smart control in one mobile cabinet. It is designed for cold plunge brands, distributors, gyms, spas, recovery studios, and commercial wellness projects that need a complete chiller system instead of a basic cooling-only machine.
The adjustable 3–42°C water-temperature range supports cold plunge operation and hot-cold contrast-therapy programs. Buyers can select the CHM-10-RV for 110–120V / 60Hz markets or the CHM-10-RW for 220–240V / 50Hz markets.
Two Voltage Versions for Different Markets
| Version | Input Voltage | Cooling Capacity | Heating Capacity | Certification |
|---|---|---|---|---|
| CHM-10-RV | 110–120V / 60Hz | 3.05kW | 4.04kW | ETL |
| CHM-10-RW | 220–240V / 50Hz | 2.51kW | 3.80kW | CE |
Both versions use a 1HP compressor system and share the same 540 × 400 × 564mm cabinet size. Confirm the destination country and electrical requirements before quotation so the correct RV or RW version can be selected.
Integrated Temperature and Water Management
The CHM-10 brings the main cold plunge operating functions into one cabinet:
- Cooling and heating with an adjustable 3–42°C water-temperature range.
- Built-in self-priming circulation system.
- External replaceable water-filter cartridge.
- Integrated ozone generator for water sanitation.
- Quick water connectors for a cleaner tub-and-chiller installation.
- WiFi control through iOS and Android apps.
This integrated layout reduces the need to match a separate pump and filter system. The external filter housing remains visible and accessible for inspection and replacement, while the rear fan and ventilation panels support heat exchange around the cabinet.
Touchscreen, WiFi and Mobile Cabinet
The front control panel gives users direct access to supported operating settings. WiFi app control allows compatible iOS and Android devices to manage the system remotely. Side handles and transport wheels make it easier to position the chiller beside a compatible cold plunge tub or move it for maintenance.
The product photographs also demonstrate a private-label front panel. This makes the CHM-10 suitable for distributors and brand owners building a branded tub-and-chiller package.
Suitable Buyers and Projects
| Buyer or Project | Recommended Use |
|---|---|
| Cold plunge brands | Build branded chiller-and-tub packages with private-label presentation. |
| Distributors and retailers | Add a feature-rich 1HP system to a regional product catalog. |
| Gyms and recovery studios | Provide managed cold plunge and contrast-therapy facilities. |
| Spas and wellness centers | Combine heating, cooling, circulation, filtration, ozone, and app control. |
| Commercial projects | Confirm voltage, connections, operating target, branding, and order requirements before quotation. |
Buying and Installation Notes
- Select CHM-10-RV for 110–120V / 60Hz markets.
- Select CHM-10-RW for 220–240V / 50Hz markets.
- Confirm tub capacity, insulation, starting water temperature, target temperature, ambient conditions, and daily use before final selection.
- Leave sufficient ventilation space around the condenser fan and cabinet air openings.
- Inspect the external filter regularly and replace the cartridge according to water quality and use frequency.
- Confirm hose size, connector requirements, voltage, plug, and installation location before production.
- For private-label projects, provide the logo, exterior requirements, packaging needs, destination market, and estimated quantity.
Key Features That Support Buying Decisions
See the product functions, materials, and project support that matter before quotation.
3–42°C Cooling and Heating
The CHM-10 supports adjustable water temperatures from 3°C to 42°C, allowing one system to serve cold plunge and hot-cold contrast-therapy applications.
- CHM-10-RV provides 3.05kW cooling and 4.04kW heating capacity.
- CHM-10-RW provides 2.51kW cooling and 3.80kW heating capacity.
- The correct version is selected according to the destination market and input voltage.
- Actual cooling time depends on water volume, starting temperature, insulation, ambient conditions, and use frequency.
Integrated Filtration, Ozone and Circulation
The CHM-10 combines a built-in self-priming pump, external replaceable water filter, and ozone generator to create a more complete cold plunge water-management loop.
- The self-priming pump circulates water without requiring a separate external pump.
- The external filter housing is accessible for cartridge inspection and replacement.
- The ozone generator adds a water-sanitation function.
- Quick connectors help create a cleaner connection between the chiller and tub.
WiFi Control and Mobile Cabinet
The front control panel, WiFi app support, side handles, and transport wheels make the CHM-10 practical for branded products and commercial installations.
- WiFi app control supports iOS and Android devices.
- Side handles and wheels assist with positioning and maintenance access.
- Cabinet ventilation and the rear condenser fan support heat exchange.
- The front panel can support approved private-label branding projects.
SPECIFICATIONS
Product Specifications
Review the configuration, dimensions, materials, and technical details for this product.
| Specification | CHM-10-RV | CHM-10-RW |
|---|---|---|
| Input Voltage | 110–120V / 60Hz | 220–240V / 50Hz |
| Input Power – Cooling | 1.07kW | 1.02kW |
| Input Power – Heating | 0.74kW | 0.70kW |
| Compressor Power – Cooling | 0.872kW | 0.847kW |
| Compressor Class | 1HP | 1HP |
| COP | 2.85 | 2.46 |
| Cooling Capacity | 3.05kW | 2.51kW |
| Heating Capacity | 4.04kW | 3.80kW |
| Specified Usage Environment | 25–35°C | 25–35°C |
| Refrigerant | R32 / 400g | R32 / 350g |
| Water Temperature | 3–42°C adjustable | 3–42°C adjustable |
| Disinfection | Ozone generator | Ozone generator |
| Circulation Pump | Built-in self-priming system | Built-in self-priming system |
| Water Filter | Installed external filter | Installed external filter |
| Remote Control | iOS and Android app, WiFi | iOS and Android app, WiFi |
| Transport Wheels | Yes | Yes |
| Carry Handles | Yes | Yes |
| Quick Connectors | Yes | Yes |
| Net Weight | 39.4kg | 40.1kg |
| Product Size | 540 × 400 × 564mm | 540 × 400 × 564mm |
| Certification | ETL | CE |
DETAIL IMAGES
CHM-10 Product Details and Components
Review the touchscreen, cabinet structure, filtration components, circulation pump, condenser fan, water connections, ventilation, and mobile design before quotation.

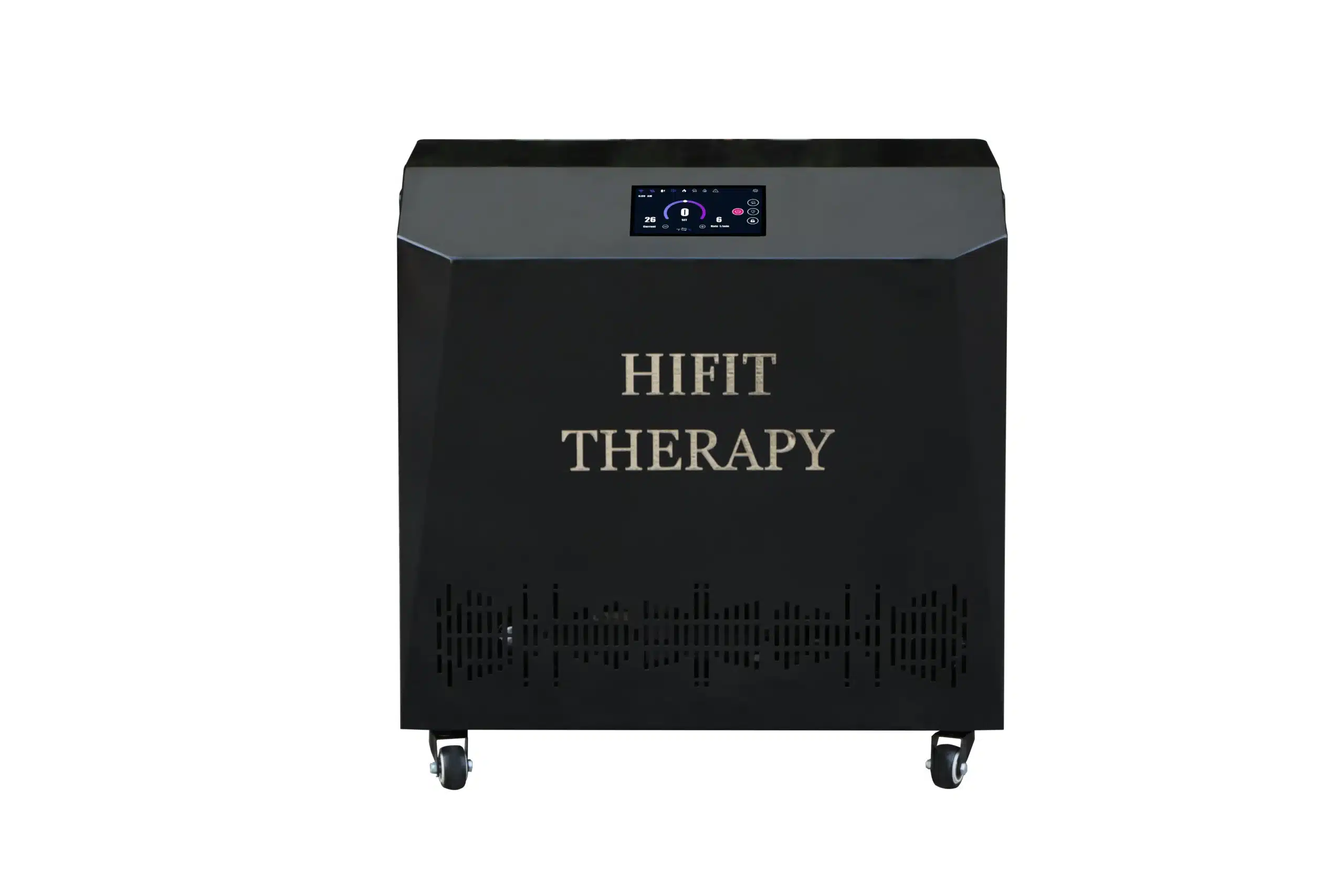

Front Touchscreen Control
Front view showing the digital control panel, private-label branding area, ventilation pattern, and caster-mounted cabinet.
External Filter and Pump Access
Three-quarter view showing the external cartridge filter, self-priming circulation pump, side handle, touchscreen, and wheels.
Mobile Cabinet Design
Shows the touchscreen angle, side ventilation, recessed handle, cabinet shape, and transport wheels.

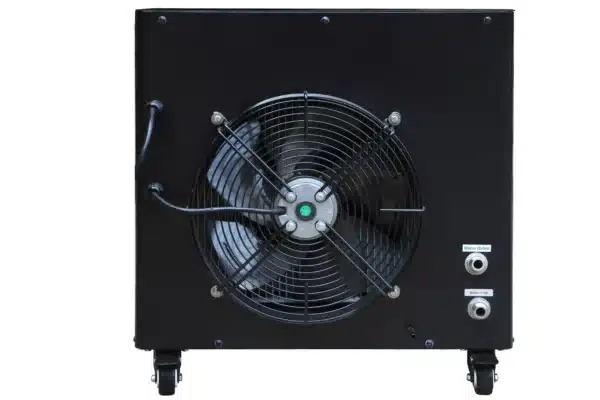

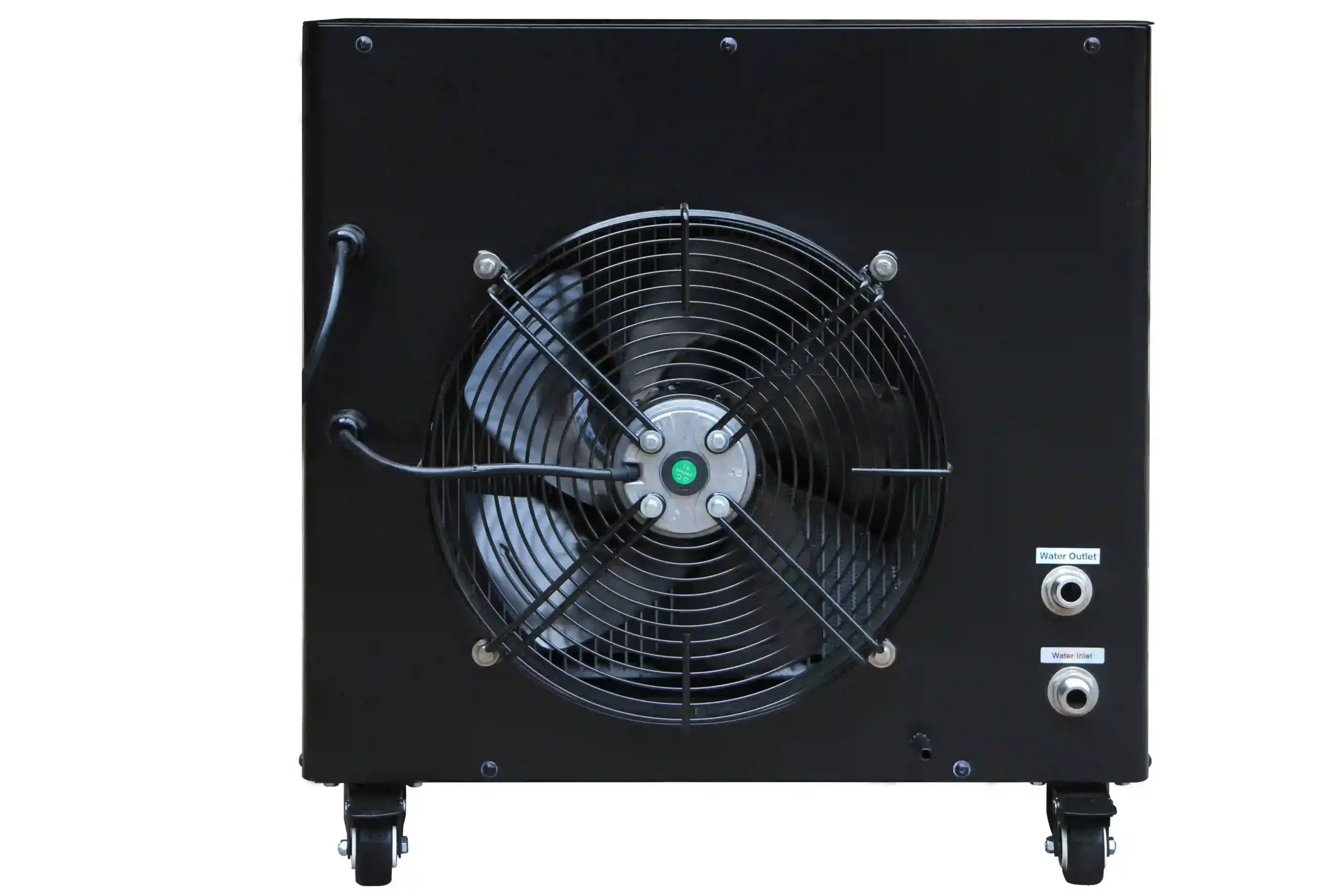

Rear Fan and Water Connections
Rear view showing the condenser fan and separate external water inlet and outlet ports.

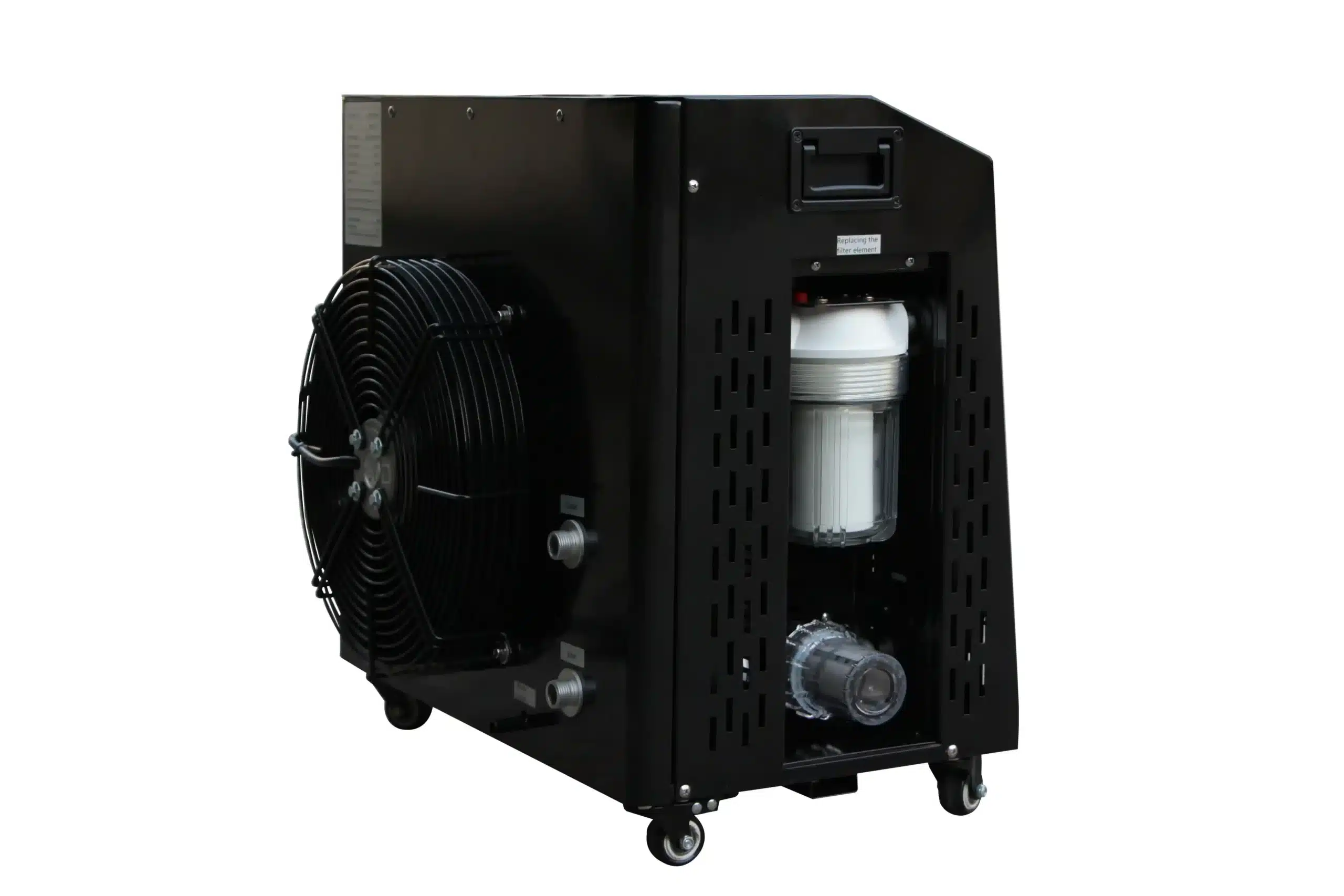

Integrated Water-Management Components
Rear-side view showing the cartridge filter, self-priming pump, condenser fan, ventilation openings, handle, and wheels.

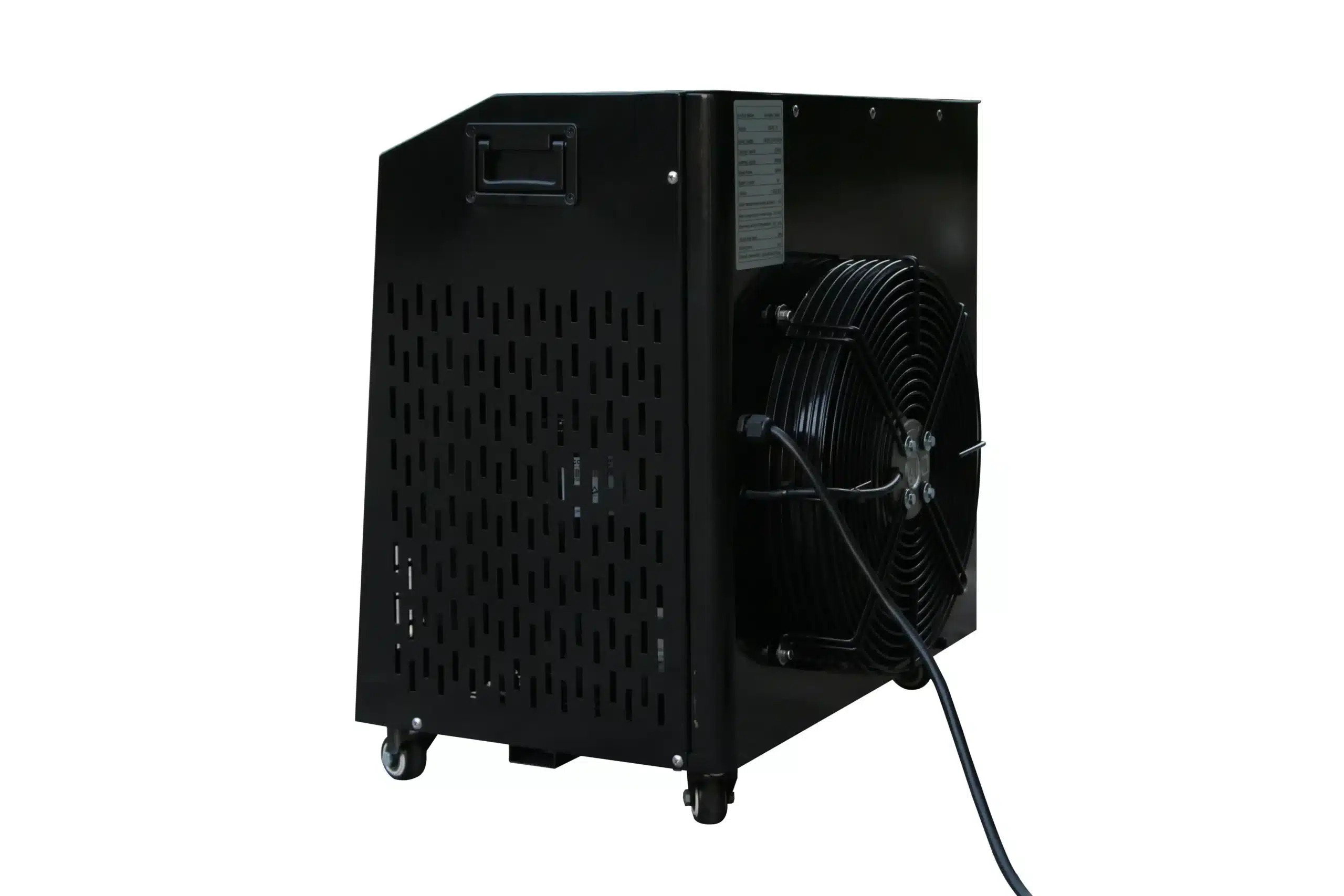

Rear Ventilation and Power Connection
Rear Ventilation and Power Connection
APPLICATIONS
Where This Product Fits
Pair the CHM-10 with compatible cold plunge tubs for branded packages, outdoor wellness spaces, gyms, spas, recovery studios, and commercial projects.
Large-Tub Outdoor Setups
For outdoor wellness areas and larger cold plunge tubs that require external cooling, heating, circulation, filtration, and smart control.
Home and Wellness Spaces
For private wellness spaces, patios, and branded tub packages that need a compact all-in-one chiller system.
Gyms, Spas and Recovery Studios
For commercial wellness operators adding a managed cold plunge or contrast-therapy experience for clients and athletes.
OEM AND BULK ORDERS
OEM and Bulk Order Support
The photographed CHM-10 demonstrates private-label logo application on the front cabinet. OMNI can support distributors, brand owners, and commercial buyers with market-specific configuration discussions before quotation.
- Choose the RV version for 110–120V / 60Hz markets or the RW version for 220–240V / 50Hz markets.
- Discuss logo placement, exterior presentation, plug, connectors, accessories, documentation, and packaging.
- Confirm sample requirements, estimated quantity, destination market, and bulk-order schedule before production.
RV 110V and RW 220V options
Private-label logo support
Sample and bulk-order planning
FACTORY DIRECT SUPPORT
01
02
03
Request Factory Quote
Why Source From OMNI
Work directly with a manufacturer that helps buyers confirm configuration, manage production details, and prepare orders for export before production begins.
Built for B2B Supply
Support distributors, commercial projects, gyms, and private-label buyers with practical order coordination.
Export-Ready Order Support
Discuss packaging, documentation, delivery planning, and custom requirements before production.
Related products
FAQ
Questions Before Quotation
Confirm voltage, tub size, installation conditions, target temperature, and order requirements before selecting the final CHM-10 version.
What is the difference between CHM-10-RV and CHM-10-RW?
CHM-10-RV is designed for 110–120V / 60Hz markets and provides 3.05kW cooling and 4.04kW heating capacity. CHM-10-RW is designed for 220–240V / 50Hz markets and provides 2.51kW cooling and 3.80kW heating capacity. Both versions support 3–42°C water-temperature adjustment.
What functions are integrated into the CHM-10?
The CHM-10 combines cooling, heating, a self-priming circulation pump, external filtration, an ozone generator, quick connectors, WiFi app control, transport wheels, and carry handles in one cabinet.
What information is required before quotation?
Please provide the destination country, voltage, tub capacity, water connections, target temperature, ambient conditions, installation location, estimated quantity, and OEM requirements. These details help confirm the correct RV or RW version.
Can CHM-10 support private-label and bulk orders?
Yes. Logo placement, exterior presentation, voltage version, plug, connectors, accessories, packaging, documentation, samples, and bulk-order requirements can be discussed according to the destination market and quantity.
