Configuration Before Quotation
Confirm voltage, cooling requirements, product options, and target use before selecting a model.
CHU-15 Cold Plunge Chiller with 0°C Cooling – 1.5HP Smart Unit
The CHU-15 cold plunge chiller with 0°C cooling combines a 1.5HP compressor, 4.30kW cooling capacity, −2–42°C water-temperature control, heating, WiFi, touchscreen operation, ozone sanitation, cartridge filtration, and a built-in brushless DC pump. Choose CHU-15-RV for 110–120V / 60Hz markets or CHU-15-RW for 220–240V / 50Hz markets.
1.5HP compressor with 4.30kW cooling capacity.
0–42°C cooling and heating for contrast programs.
WiFi, touchscreen, ozone, filtration, and brushless pump.
RV 110–120V and RW 220–240V versions.
Send your country, voltage, tub volume, insulation, target temperature, daily user load, quantity, and certification requirements.
PRODUCT SNAPSHOT
Key Product Snapshot Before Quotation
Compare the product type, main use, construction, and available project support at a glance.
Cooling System
1.5HP / 4.30kW cooling capacity
Temperature Range
0°C to 42°C adjustable
Smart Water Care
WiFi, ozone, filter, brushless pump
Electrical Versions
110–120V / 60Hz or 220–240V / 50Hz
PRODUCT CONCEPT
Product Positioning and Use Case
Understand who this product is designed for and the practical reasons to include it in a project or catalog.
1.5HP Smart Cooling for Larger Cold Plunge Projects
The CHU-15 cold plunge chiller with 0°C capability delivers 4.30kW cooling, 5.40kW heating, and −2–42°C adjustable temperature control.
- 1.5HP compressor system.
- Touchscreen and WiFi app control.
- Built-in brushless pump, ozone, and cartridge filtration.
- RV and RW electrical versions for different markets.
PRODUCT DETAILS
Product Details and Configuration Notes
Review the construction, operation, configuration options, and sourcing information needed before quotation.
The CHU-15 cold plunge chiller with 0°C performance is designed for buyers who need more cooling capacity than compact home chillers can provide. Its 1.5HP compressor system delivers 4.30kW cooling capacity and supports an adjustable water-temperature range from −2°C to 42°C for cold plunge and hot-cold contrast programs.
This cold plunge chiller with 0°C control integrates the main water-management components into one mobile cabinet: touchscreen and WiFi control, a brushless DC circulation pump, replaceable cartridge filtration, ozone sanitation, quick connectors, and transport wheels. The result is a cleaner installation path for distributors, wellness brands, gyms, spas, recovery studios, and commercial projects.
Two Electrical Versions for Target Markets
The CHU-15 family is supplied in two electrical versions. Confirm the destination country and site power before quotation so the correct model, plug, cable, protection requirements, and certification documents can be matched.
| Item | CHU-15-RV | CHU-15-RW |
|---|---|---|
| Input Voltage | 110–120V / 60Hz | 220–240V / 50Hz |
| Cooling Input Power | 1.30kW | 1.70kW |
| Cooling Capacity | 4.30kW | 4.30kW |
| Heating Capacity | 5.40kW | 5.40kW |
| COP | 3.30 | 2.52 |
| Primary Certification | ETL | CE |
1.5HP Cooling and Heating Performance
The cold plunge chiller with 0°C capability uses a 1.5HP compressor rated at 1065W and a shared 4.30kW cooling capacity. The −2–42°C adjustable range allows the selected system to support cold immersion as well as heating for contrast-therapy programs.
Actual minimum temperature and cooling time depend on usable water volume, tub insulation, starting temperature, ambient conditions, ventilation, plumbing, circulation, cover use, and operating time. For tubs approaching 600L, provide the full project conditions before treating 0°C as a guaranteed result.
Integrated Water Management
The CHU-15 cold plunge chiller with 0°C operation combines a built-in brushless DC pump with cartridge filtration and ozone sanitation. The pump manages circulation between the tub and chiller, the filter captures suspended debris, and the ozone system supports routine water hygiene.
- Built-in brushless DC circulation pump.
- Replaceable cartridge filtration with accessible service positioning.
- Ozone generator for water sanitation support.
- Quick connectors for organized inlet and outlet plumbing.
Filtration and ozone do not eliminate normal maintenance. Cleaning frequency, filter replacement, water treatment, drainage, and hygiene procedures must be planned for the actual user load and local requirements.
Touchscreen and WiFi Operation
The cold plunge chiller with 0°C control system provides an on-machine touchscreen plus compatible iOS and Android app access. Users can review operating status and manage supported temperature functions without relying only on mechanical controls.
Mobile Cabinet for Installation and Service
The cabinet measures 600 × 580 × 430mm and weighs 51kg. Transport wheels help installers reposition the machine for setup and service access. Maintain a stable surface, airflow clearance, protected electrical supply, suitable drainage, and unobstructed maintenance access around the cabinet.
Applications and Buyer Types
The cold plunge chiller with 0°C system can be considered for residential recovery spaces, gyms, sports clubs, spas, wellness studios, hotels, distributors, and private-label cold plunge projects. Tub material may include insulated inflatable, acrylic, fiberglass, stainless steel, or custom commercial constructions after system matching.
Information Required Before Quotation
Send the destination country, voltage, tub type, usable water volume, insulation, starting and target temperatures, ambient range, inlet/outlet sizes, daily user load, installation environment, quantity, certification requirement, and OEM requests. OMNI will use these details to confirm whether the selected cold plunge chiller with 0°C configuration is appropriate.
Key Features That Support Buying Decisions
See the product functions, materials, and project support that matter before quotation.
1.5HP Cooling with −2–42°C Control
The cold plunge chiller with 0°C performance uses a 1.5HP compressor system with 4.30kW cooling capacity and 5.40kW heating capacity.
- Supports cold plunge and hot-cold contrast programs.
- Actual results depend on tub volume, insulation, ambient conditions, and run time.
- RV and RW versions are matched to different electrical markets.
Integrated Pump, Filtration, and Ozone
The water-management system combines a brushless DC pump, accessible cartridge filtration, ozone sanitation, and quick connections in one cabinet.
- Supports managed circulation between tub and chiller.
- Replaceable filter captures suspended debris.
- Ozone supports routine water hygiene.
Smart Control and Serviceable Mobile Cabinet
The cold plunge chiller with 0°C control includes an on-machine touchscreen, compatible WiFi app access, transport wheels, and clear rear service access.
- Compatible iOS and Android app support.
- Large rear fan and ventilation area.
- Wheeled 51kg cabinet for installation and service positioning.
SPECIFICATIONS
Product Specifications
Review the configuration, dimensions, materials, and technical details for this product.
| Specification | CHU-15-RV | CHU-15-RW |
|---|---|---|
| Product Type | 1.5HP cold plunge chiller with 0°C cooling | |
| Input Voltage | 110–120V / 60Hz | 220–240V / 50Hz |
| Cooling Input Power | 1.30kW | 1.70kW |
| Compressor | 1.5HP / 1065W | |
| Cooling Capacity | 4.30kW | |
| Heating Capacity | 5.40kW | |
| COP | 3.30 | 2.52 |
| Water Temperature | −2°C to 42°C adjustable | |
| Usage Environment | 0°C to 45°C | |
| Water Pump | Built-in brushless DC pump | |
| Filtration | Replaceable cartridge filtration | |
| Disinfection | Ozone generator | |
| Control | Touchscreen + WiFi app for iOS/Android | |
| Mobility | Transport wheels | |
| Quick Connectors | Included | |
| Net Weight | 51kg | |
| Product Size | 600 × 580 × 430mm | |
| Certification | ETL | CE |
DETAIL IMAGES
CHU-15 Smart Chiller Construction and Components
Review the touchscreen, ventilation, filtration, water connections, internal component layout, cooling fan, wheels, and cabinet access before quotation.

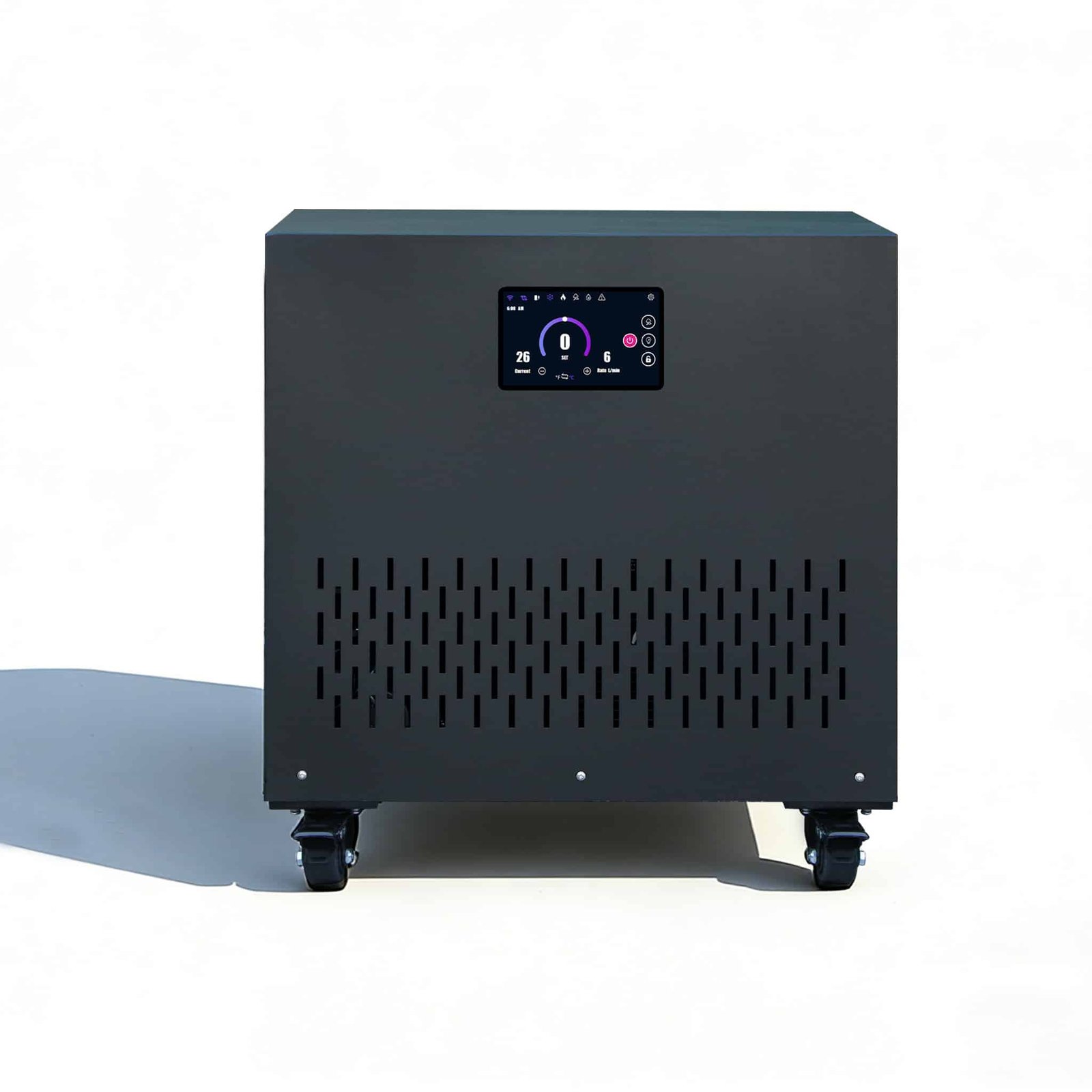

Front Touchscreen and Ventilation Panel
Front view showing the touchscreen controller, ventilation openings, stable feet, and compact black cabinet.

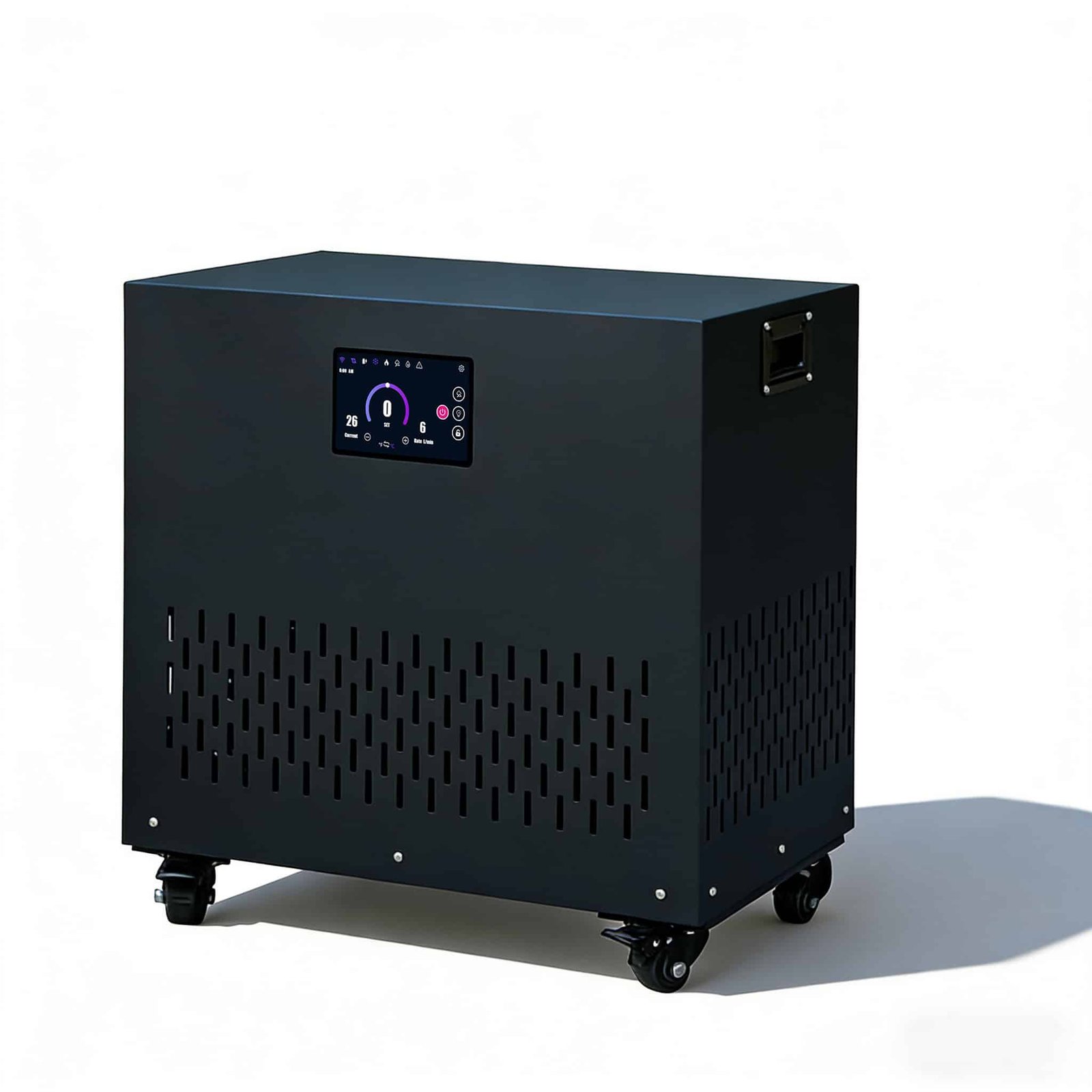

1.5HP Chiller Three-Quarter View
Three-quarter view showing the touchscreen, side component access, ventilation, and wheeled cabinet proportions.

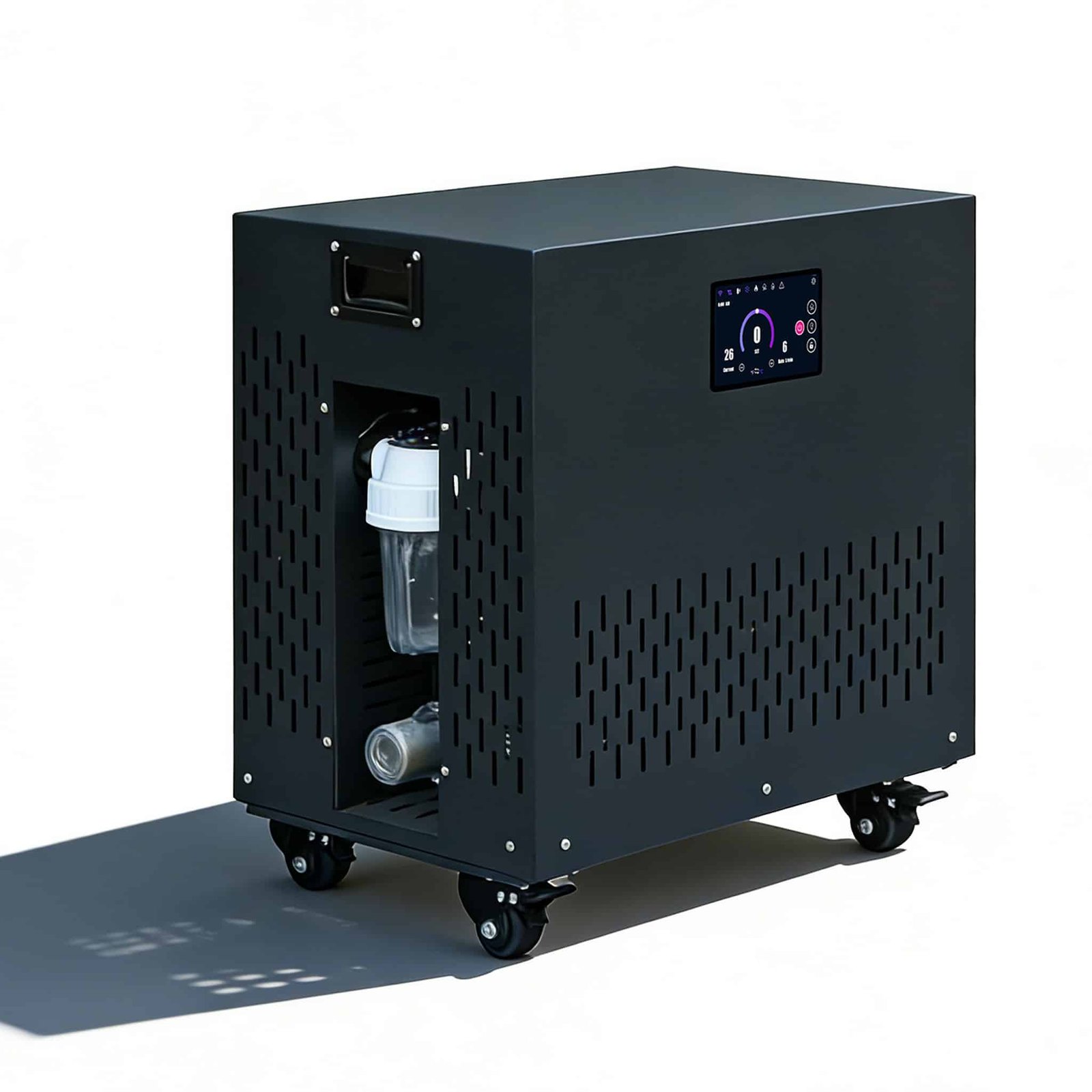

Filter and Control-Side Layout
Side view showing the accessible cartridge filter, touchscreen position, service panel, and transport wheels.

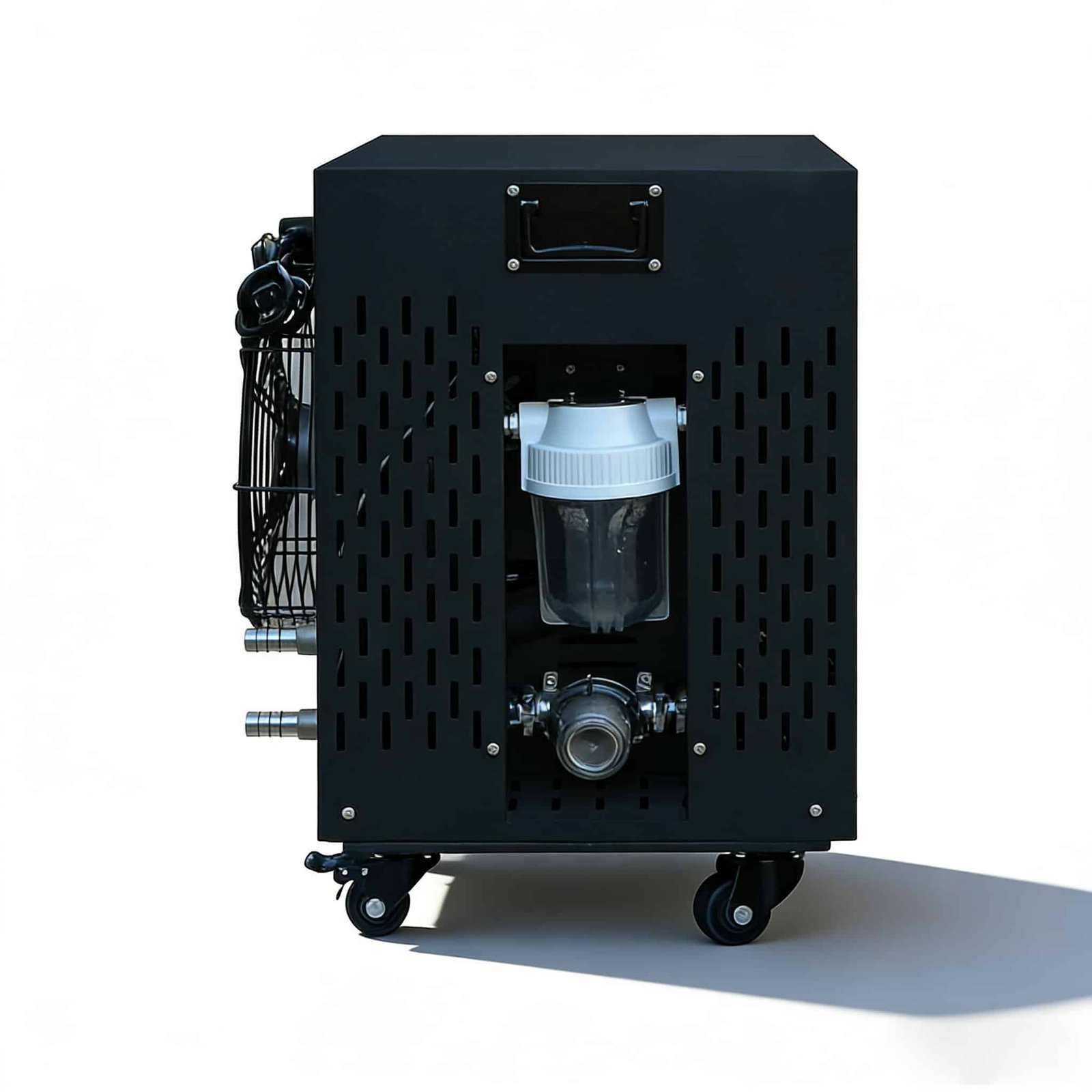

Cartridge Filter and Water Connections
Direct component-side view showing the vertical replaceable filter and organized inlet and outlet connection area.

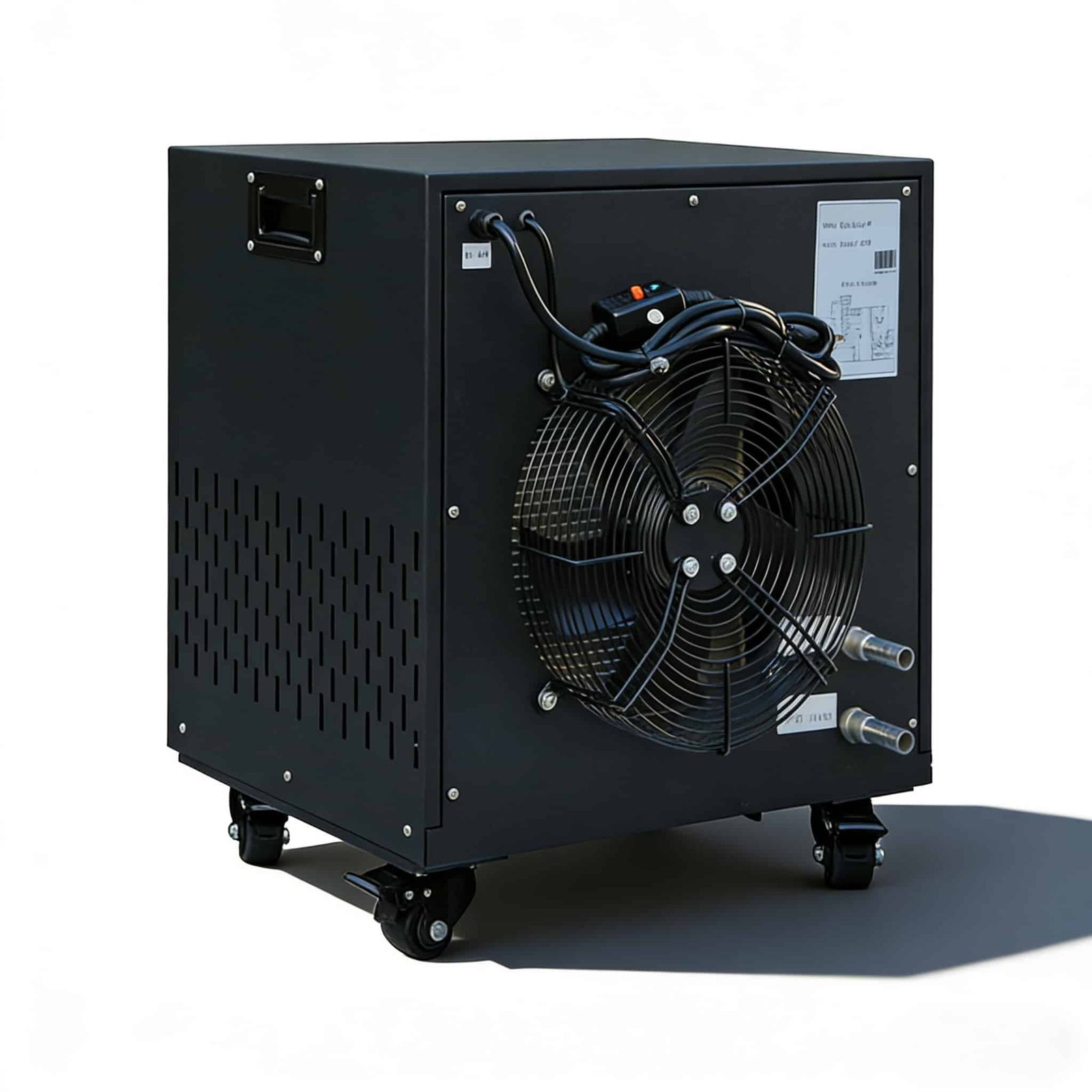

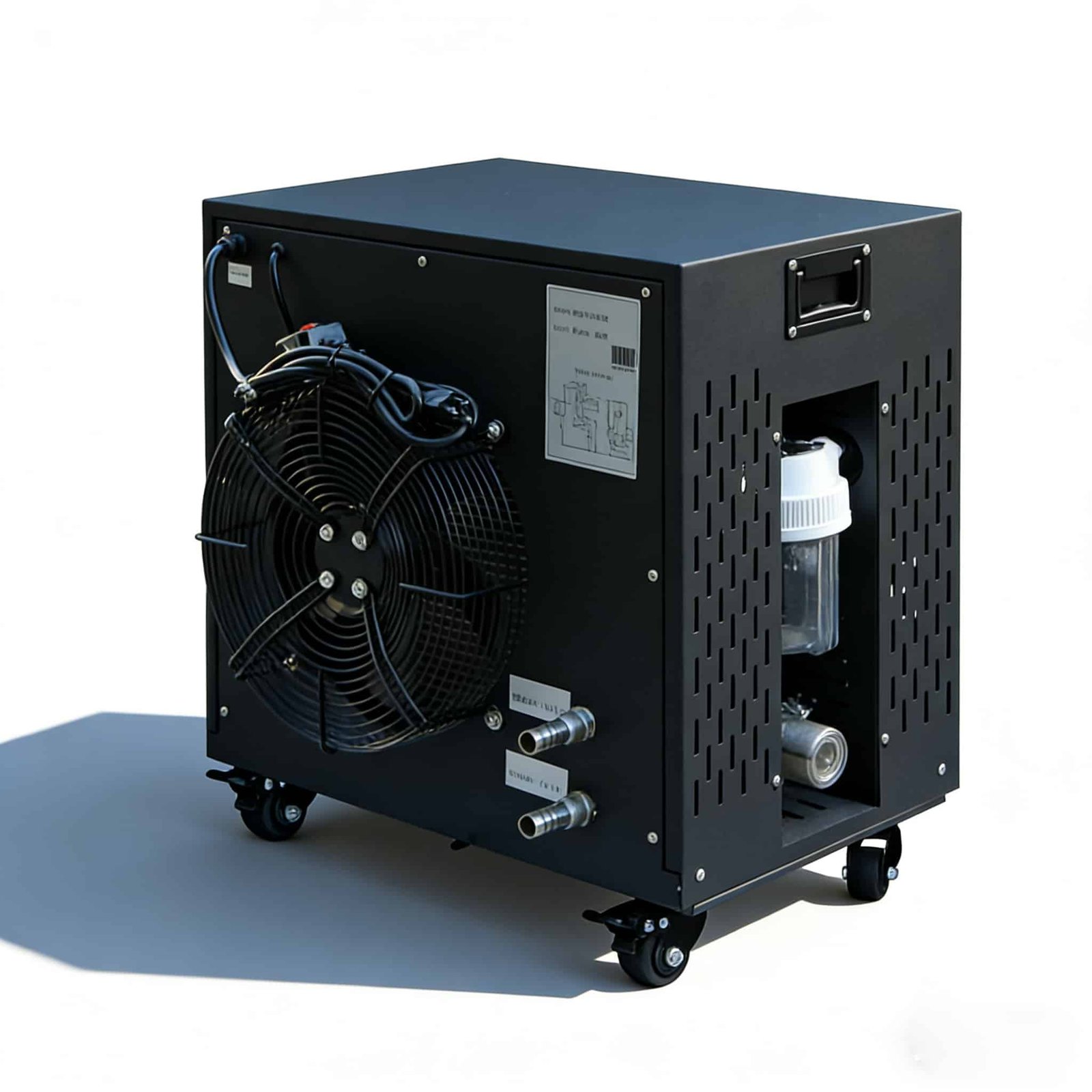

Rear Component and Plumbing Access
Rear three-quarter view showing the pump, filter housing, quick connectors, fan area, and serviceable component layout.

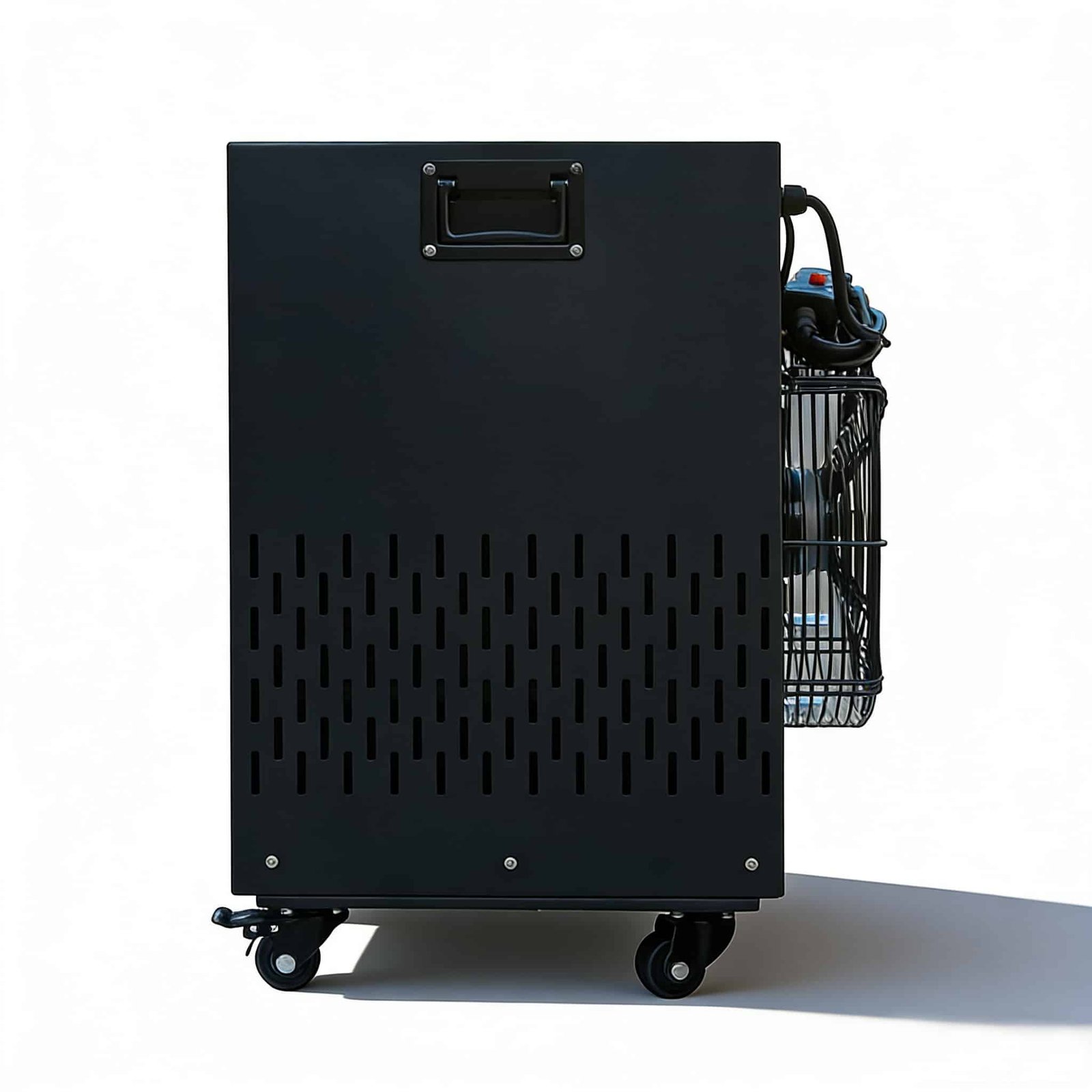

Cooling Fan and Wheeled Base
Rear-side view showing the large cooling fan, ventilation panel, side components, and caster wheels.
APPLICATIONS
Where This Product Fits
Use the CHU-15 cold plunge chiller with 0°C capability in residential recovery areas, athlete-focused training environments, spas, wellness studios, and commercial cold plunge projects.
Residential Deck Recovery
Smart cooling support for a round insulated cold plunge tub in a private outdoor wellness space.
Athlete and Training Recovery
Temperature-controlled cold immersion for athletes, coaches, gyms, and post-training recovery programs.
Indoor Spa and Wellness Projects
Integrated cold plunge cooling for indoor wellness rooms, recovery studios, spas, and hospitality projects.
OEM AND BULK ORDERS
OEM and Bulk Order Support
OMNI supports cold plunge chiller with 0°C projects for distributors, wellness brands, gyms, spas, hotels, and commercial recovery operators.
- Confirm RV or RW voltage, plug, connectors, accessories, cabinet requirements, packaging, and documentation.
- Discuss logo placement, approved exterior options, samples, quantities, and production coordination.
- Match ETL, CE, SAA, RoHS, or other requested documents to the exact model and destination before using certification claims.
RV/RW Voltage & Market Configuration
Private Label, Packaging & Documentation
Samples, Bulk Orders & Export Coordination
FACTORY DIRECT SUPPORT
01
02
03
Request Factory Quote
Why Source From OMNI
Work directly with a manufacturer that helps buyers confirm configuration, manage production details, and prepare orders for export before production begins.
Built for B2B Supply
Support distributors, commercial projects, gyms, and private-label buyers with practical order coordination.
Export-Ready Order Support
Discuss packaging, documentation, delivery planning, and custom requirements before production.
Related products
FAQ
Questions Before Quotation
Confirm electrical version, tub volume, insulation, ambient conditions, water connections, target temperature, certification, and order requirements before selecting the CHU-15.
Can the CHU-15 cool water to 0°C?
The cold plunge chiller with 0°C capability has a confirmed −2–42°C adjustable range. Actual minimum temperature and cooling time depend on water volume, insulation, starting temperature, ambient conditions, circulation, plumbing, cover use, and operating time.
What is the difference between CHU-15-RV and CHU-15-RW?
CHU-15-RV is designed for 110–120V / 60Hz markets with 1.30kW cooling input power, 3.30 COP, and ETL certification. CHU-15-RW is designed for 220–240V / 50Hz markets with 1.70kW cooling input power, 2.52 COP, and CE certification.
Are the pump, filter, and ozone system included?
The confirmed CHU-15 configuration integrates a brushless DC circulation pump, cartridge filtration, and an ozone generator. Confirm the supplied filter cartridge, hoses, connectors, and other accessories in the quotation.
What information is required before quotation?
Provide the destination country, voltage, tub material, usable water volume, insulation, inlet and outlet sizes, starting and target temperatures, ambient range, daily user load, installation environment, quantity, certification requirements, and OEM requests.
PROJECT INQUIRY
Configure a CHU-15 for Your Cold Plunge Project
Send your country, voltage, tub capacity, insulation, target temperature, daily use, quantity, and certification requirements. OMNI will confirm the suitable CHU-15-RV or CHU-15-RW configuration before quotation.
Request Factory Quote
Your information will only be used for quotation and product recommendation.
