Configuration Before Quotation
Confirm voltage, cooling requirements, product options, and target use before selecting a model.
CHU-05-RV 1/2 HP Water Chiller for Cold Plunge – 0°C Portable Unit
The CHU-05-RV is a compact 1/2 HP water chiller for cold plunge systems with 0–40°C control, 1.48kW cooling capacity, WiFi operation, ozone sanitation, an 88W external DC pump, and suitcase-style mobility for 110–120V / 60Hz markets.
0–40°C adjustable cooling with 1.48kW capacity.
25.5kg portable cabinet with pull handle and wheels.
WiFi app control with integrated ozone sanitation.
88W external DC pump for managed water circulation.
Send your country, voltage, tub capacity, insulation, target temperature, quantity, and OEM requirements before quotation.
PRODUCT SNAPSHOT
Key Product Snapshot Before Quotation
Compare the product type, main use, construction, and available project support at a glance.
Cooling System:
0.5HP / 1.48kW cooling capacity
Temperature:
0–40°C adjustable
Power Supply:
110–120V / 60Hz
Mobility:
25.5kg, pull handle and wheels
PRODUCT CONCEPT
Product Positioning and Use Case
Understand who this product is designed for and the practical reasons to include it in a project or catalog.
Compact 0°C Cooling for Portable Wellness Projects
The CHU-05-RV 1/2 HP water chiller for cold plunge projects combines freezing-point temperature control with a compact, mobile cabinet.
- 0–40°C adjustable water-temperature range.
- 1.48kW cooling capacity with 0.47kW input power.
- WiFi app control, ozone sanitation, and an 88W external DC pump.
- 25.5kg cabinet with an extendable pull handle and transport wheels.
PRODUCT DETAILS
Product Details and Configuration Notes
Review the construction, operation, configuration options, and sourcing information needed before quotation.
Portable CHU-05-RV Cold Plunge Cooling System
The 1/2 HP water chiller for cold plunge applications is designed for buyers who need a lighter and more mobile alternative to a full-size cabinet chiller. CHU-05-RV combines 0–40°C temperature control, 1.48kW cooling capacity, WiFi operation, ozone sanitation, and an external 88W DC circulation pump.
At 25.5kg, the 1/2 HP water chiller for cold plunge setups uses a pull handle and transport wheels for suitcase-style movement. It is intended for 110–120V / 60Hz markets and can be discussed for home wellness, trainer demonstrations, mobile recovery services, and compact commercial projects.
0°C-Capable Cooling in a Compact Cabinet
The 1/2 HP water chiller for cold plunge systems provides a 0–40°C adjustable water-temperature range with 1.48kW cooling capacity and 0.47kW input power. Actual minimum temperature and cooling time depend on water volume, starting temperature, tub insulation, ambient temperature, hose layout, circulation, and operating time.
For projects targeting 0°C, use a well-insulated tub and cover, keep plumbing runs organized, and confirm the complete operating conditions before quotation. A specific cooling time, water-volume limit, or amount of ice should not be promised without a matched-system test.
WiFi, Ozone and External Water Circulation
The 1/2 HP water chiller for cold plunge projects supports WiFi app control on compatible iOS and Android devices. An ozone generator adds a sanitation function, while the supplied 88W external DC pump circulates water between the tub and chiller.
- WiFi app support for compatible temperature and operating controls.
- Ozone sanitation integrated into the water-management system.
- External 88W DC circulation pump included with the confirmed configuration.
- Optional filtration can be discussed separately before quotation.
Portable Design for Flexible Use
The 1/2 HP water chiller for cold plunge products weighs 25.5kg and measures 435 × 350 × 360mm. The extendable pull handle and caster wheels help with movement between storage, demonstration, wellness, and installation areas.
Portable does not mean the machine should be operated without preparation. Confirm a stable surface, suitable electrical protection, ventilation clearance, water connections, drainage planning, and protection from unsuitable weather exposure before use.
Technical Configuration
| Specification | CHU-05-RV |
|---|---|
| Product Type | 1/2 HP water chiller for cold plunge |
| Voltage | 110–120V / 60Hz |
| Cooling Capacity | 1.48kW |
| Input Power | 0.47kW |
| Water Temperature | 0–40°C adjustable |
| Refrigerant | R32 / 350g |
| Water Pump | 88W external DC pump |
| Control | WiFi app for iOS and Android |
| Disinfection | Ozone generator |
| Net Weight | 25.5kg |
| Product Size | 435 × 350 × 360mm |
| Mobility | Pull handle and transport wheels |
Buyer and Installation Information
Before ordering the 1/2 HP water chiller for cold plunge projects, provide the destination country, voltage, tub material and usable water volume, insulation, inlet/outlet requirements, ambient conditions, target temperature, daily use pattern, estimated quantity, and OEM requirements.
Key Features That Support Buying Decisions
See the product functions, materials, and project support that matter before quotation.
0°C-Capable Cooling and Efficient Operation
The 1/2 HP water chiller for cold plunge projects provides a 0–40°C range, 1.48kW cooling capacity, and 0.47kW input power.
- Designed for freezing-point operation under suitable matched-system conditions.
- Actual results depend on water volume, insulation, ambient temperature, plumbing, circulation, and run time.
- R32 / 350g refrigerant is used in the confirmed CHU-05-RV configuration.
Suitcase-Style Portable Design
The 25.5kg cabinet uses a pull handle and transport wheels to make the 1/2 HP water chiller for cold plunge demonstrations and installations easier to reposition.
- Compact 435 × 350 × 360mm cabinet.
- Extendable pull handle for guided movement.
- Caster wheels for storage, display, and maintenance access.
- Confirm a stable surface and safe electrical and water setup before operation.
WiFi, Ozone and External Water Pump
The 1/2 HP water chiller for cold plunge systems combines WiFi app support, ozone sanitation, and an included 88W external DC circulation pump.
- Compatible iOS and Android app control.
- Ozone sanitation integrated into the water loop.
- External pump supports circulation between the tub and chiller.
- Filtration is optional and should be confirmed separately before quotation.
SPECIFICATIONS
Product Specifications
Review the configuration, dimensions, materials, and technical details for this product.
| Specification | CHU-05-RV |
|---|---|
| Product Type | 1/2 HP water chiller for cold plunge |
| Cooling Class | 0.5HP |
| Input Voltage | 110–120V / 60Hz |
| Water Temperature | 0–40°C adjustable |
| Cooling Capacity | 1.48kW |
| Input Power | 0.47kW |
| Refrigerant | R32 / 350g |
| Control | WiFi app for iOS and Android |
| Disinfection | Ozone generator |
| Water Pump | 88W external DC pump |
| Water Filter | Optional; confirm before quotation |
| Net Weight | 25.5kg |
| Product Size | 435 × 350 × 360mm |
| Mobility | Transport wheels and pull handle |
DETAIL IMAGES
CHU-05-RV Portable Chiller Details
Review the control panel, cooling ventilation, pull handle, wheels, cabinet structure, and water-connection side before quotation.

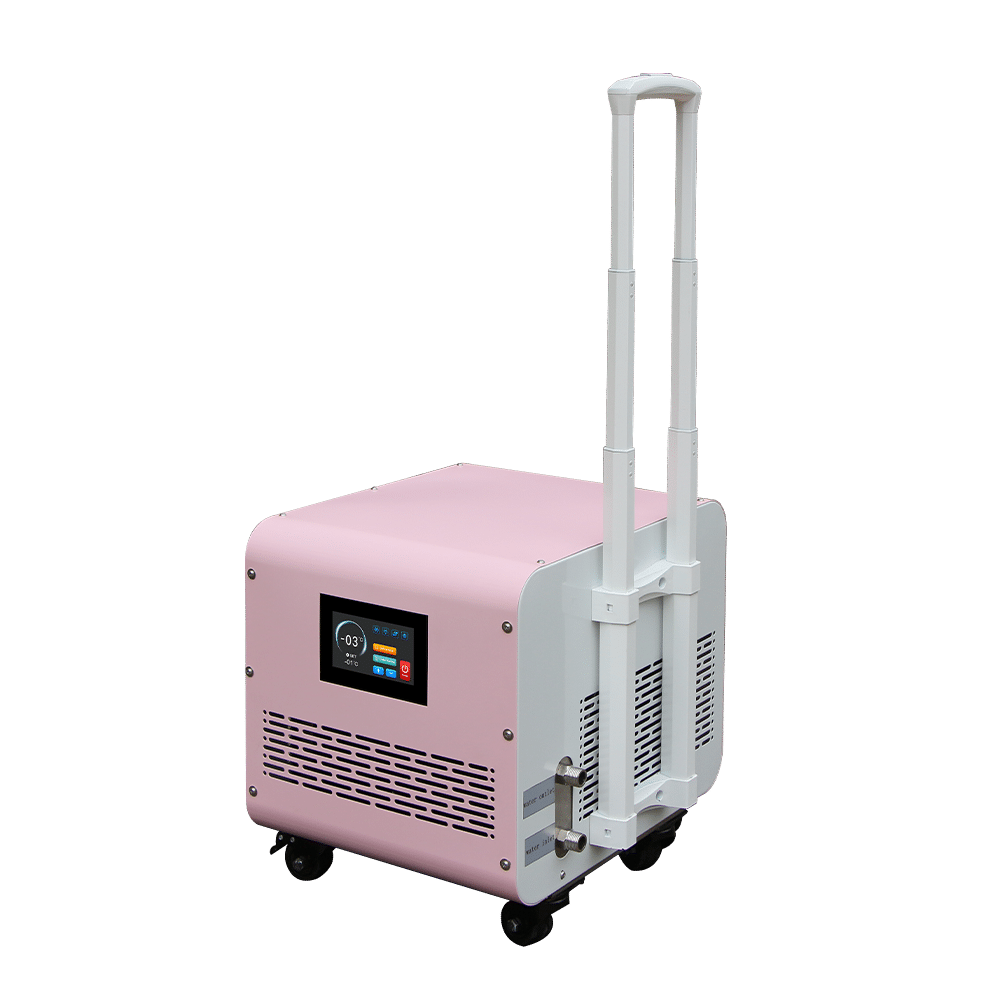

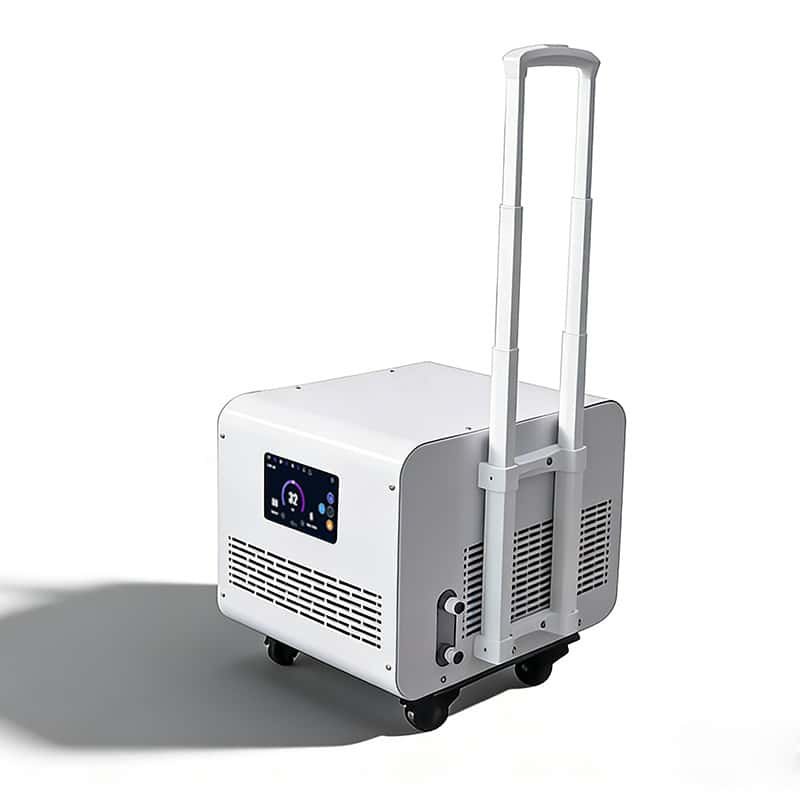

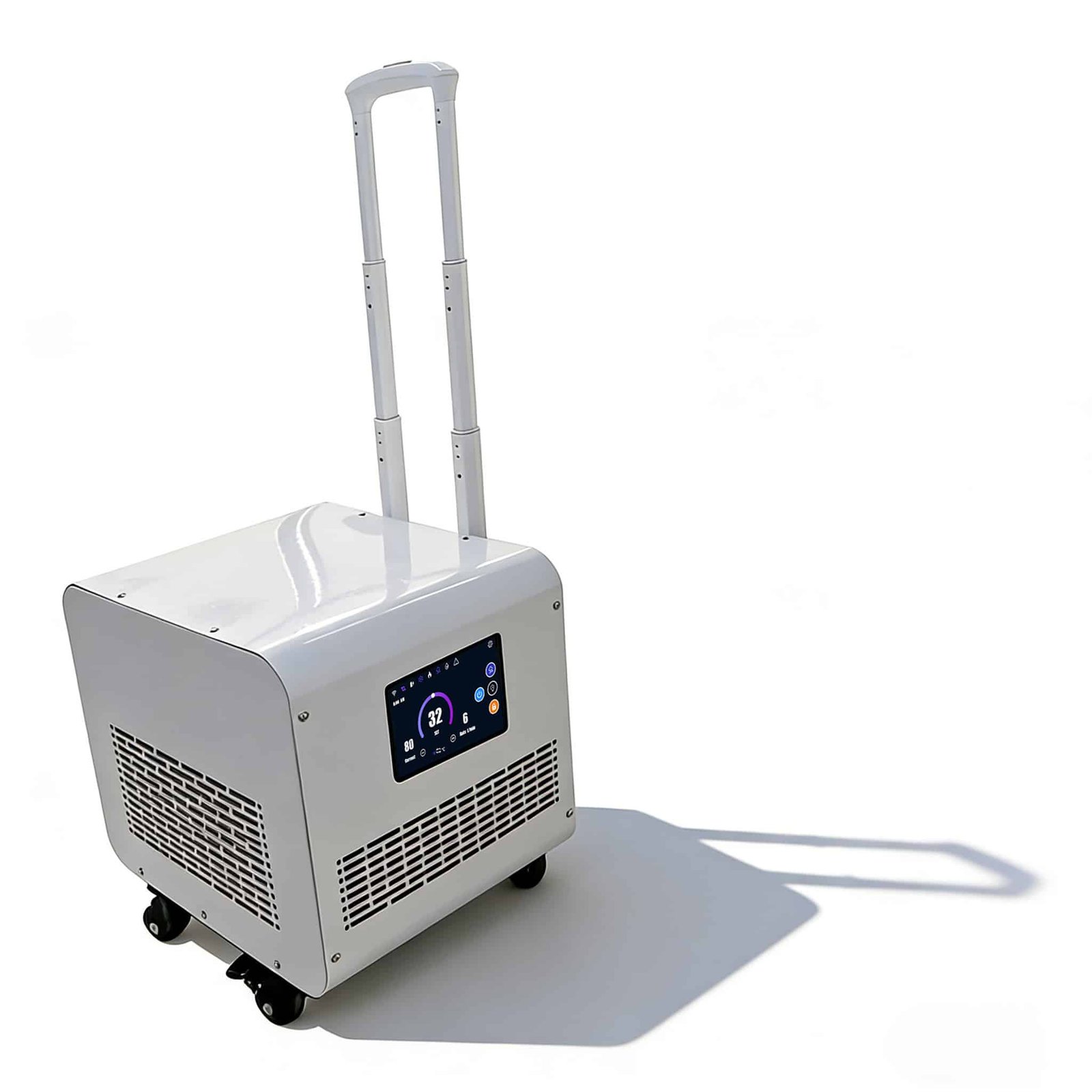

Digital Control and Pull Handle
Full product view showing the digital control panel, compact cabinet, extendable handle, and caster wheels.

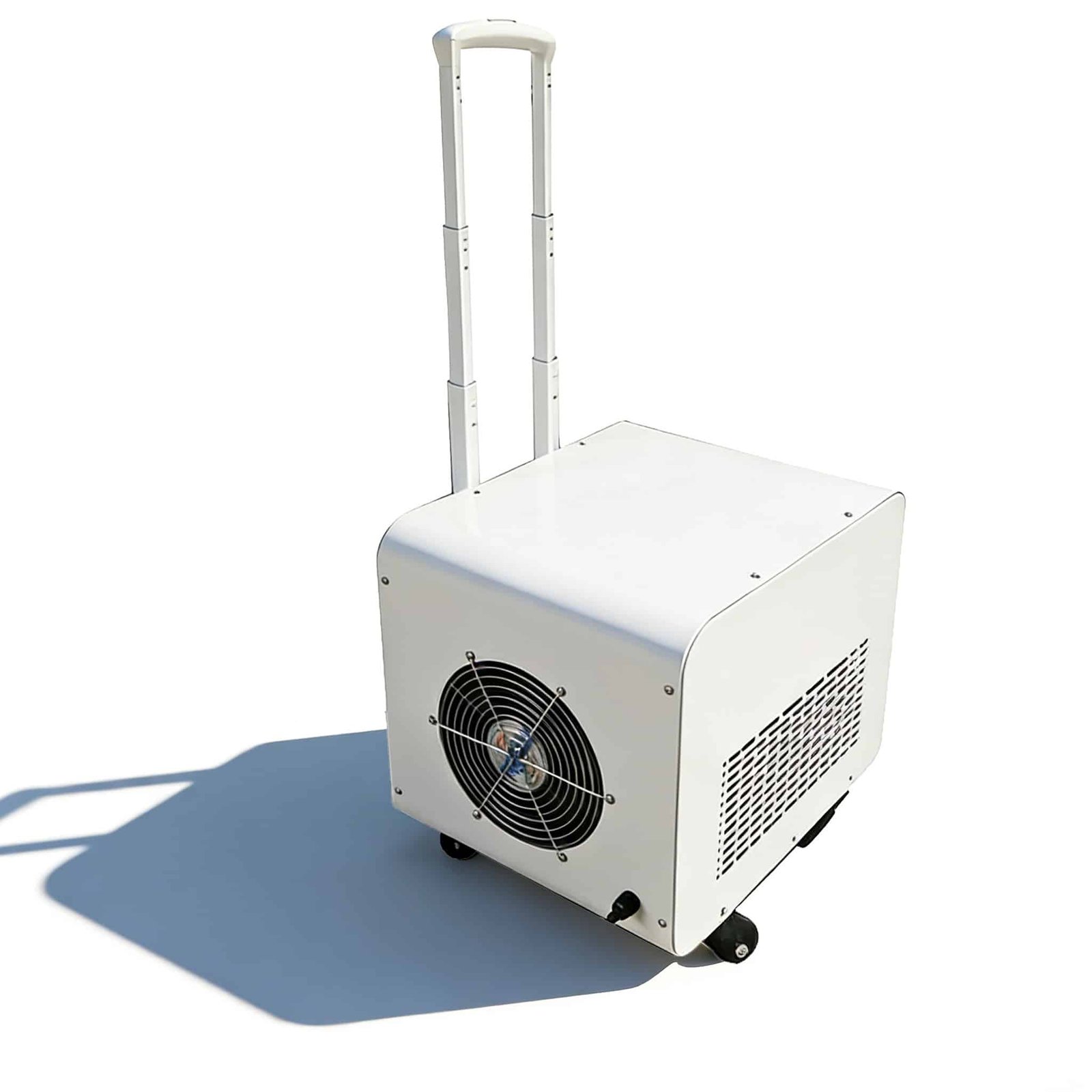

Side Cooling Fan and Mobile Base
Side view showing the large cooling fan, ventilation area, pull handle, and wheeled base.

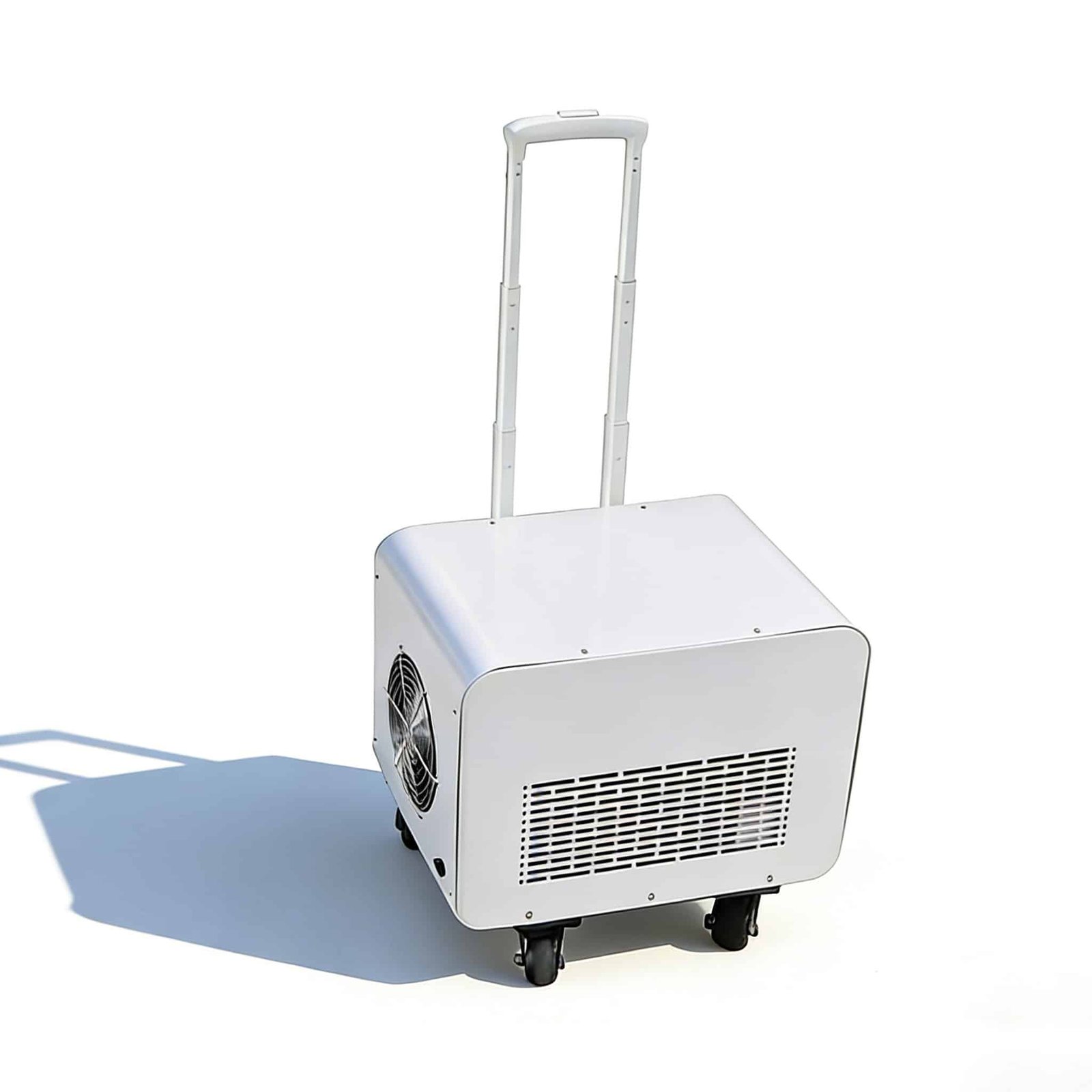

Front Ventilation Panel
Front-side view of the ventilation grille and compact cabinet proportions.
Rear Cabinet and Connection Side
Opposite-side view showing the cabinet structure, handle, wheels, and external connection area.
Pull-Handle Mobility in Cold Conditions
Outdoor view demonstrating the extendable pull handle, caster wheels, and suitcase-style movement of the compact chiller.
Compact Poolside Chiller Size
Poolside view showing the portable cabinet scale and wheeled design for moving the chiller between setup and storage areas.
APPLICATIONS
Where This Product Fits
Use the portable 1/2 HP water chiller for cold plunge projects in residential wellness areas, mobile demonstrations, trainer-led sessions, and compact commercial recovery spaces.
Cold-Climate Transport and Setup
Portable movement for users who need to store or reposition the compact chiller between sessions.
Residential Poolside Wellness
Compact cooling support for private wellness areas and home cold plunge projects.
Mobile Trainers and Recovery Services
Suitcase-style mobility for demonstrations, trainers, pop-up recovery activities, and flexible wellness services.
OEM AND BULK ORDERS
OEM and Bulk Order Support
OMNI can discuss the CHU-05-RV 1/2 HP water chiller for cold plunge projects with distributors, wellness brands, and commercial buyers.
- Confirm logo placement, cabinet color, plug, connectors, accessories, packaging, and documentation.
- Provide the destination market, tub configuration, target temperature, estimated quantity, and sample requirements.
- Available customization and compliance documents must be confirmed before production.
Private Label & Cabinet Color Options
Plug, Connector & Packaging Customization
Sample, Bulk Order & Export Support
FACTORY DIRECT SUPPORT
01
02
03
Request Factory Quote
Why Source From OMNI
Work directly with a manufacturer that helps buyers confirm configuration, manage production details, and prepare orders for export before production begins.
Built for B2B Supply
Support distributors, commercial projects, gyms, and private-label buyers with practical order coordination.
Export-Ready Order Support
Discuss packaging, documentation, delivery planning, and custom requirements before production.
Related products
FAQ
Questions Before Quotation
Confirm water volume, tub insulation, ambient conditions, circulation, voltage, target temperature, and order requirements before selecting a compact 0°C system.
Can the CHU-05-RV reach 0°C?
The 1/2 HP water chiller for cold plunge projects has a confirmed 0–40°C adjustable range. Actual minimum temperature and cooling time depend on the matched tub, usable water volume, insulation, starting temperature, ambient conditions, plumbing, circulation, and operating time.
Does the system include a pump and filter?
The confirmed CHU-05-RV configuration includes an 88W external DC circulation pump and an ozone generator. A water filter is optional and should be specified separately before quotation.
What information is needed before quotation?
Please provide the destination country, voltage, tub material, usable water volume, insulation, inlet/outlet requirements, target temperature, ambient conditions, daily use, estimated quantity, and OEM requirements.
Can this portable chiller support OEM and bulk orders?
Yes. Logo placement, cabinet color, plug, connectors, accessories, packaging, documentation, samples, and bulk-order requirements can be discussed for approved projects before production.
PROJECT INQUIRY
Configure a Portable CHU-05-RV for Your Project
Send your country, voltage, tub capacity, insulation, target temperature, buyer type, quantity, and OEM requirements. OMNI will confirm the suitable configuration before quotation.
