WT-13 Cedar Cold Plunge Tub | Built-In 1HP Chiller

The WT-13 cedar cold plunge tub with chiller is an integrated cedar-and-stainless ice bath system designed for individual adult recovery in homes, gyms, spas, clinics and hospitality projects. Its elongated oval chamber provides more room than a compact vertical barrel, while the adjoining wooden cabinet houses the controller and cooling-system area.

The external dimensions are 1360 × 660 × 730mm, the internal dimensions are 1300 × 600 × 680mm and the approximate net weight is 85kg. The corrected recommended capacity is one adult; the chamber cannot comfortably accommodate two adults.

Oval Stainless Steel Chamber for One Adult

The 304 stainless steel liner has rounded ends, a finished rim and a deep 680mm internal height. It is intended for one adult. The space may physically accommodate one adult with one child, or two children depending on body size, but child use requires continuous close adult supervision and a suitable temperature and exposure plan.

When comparing a cedar cold plunge tub with chiller, buyers should verify the internal dimensions, entry position, usable water level, fittings and drainage. The WT-13 must not be marketed as comfortable for two adults.

Red Cedar Exterior and Integrated Cabinet

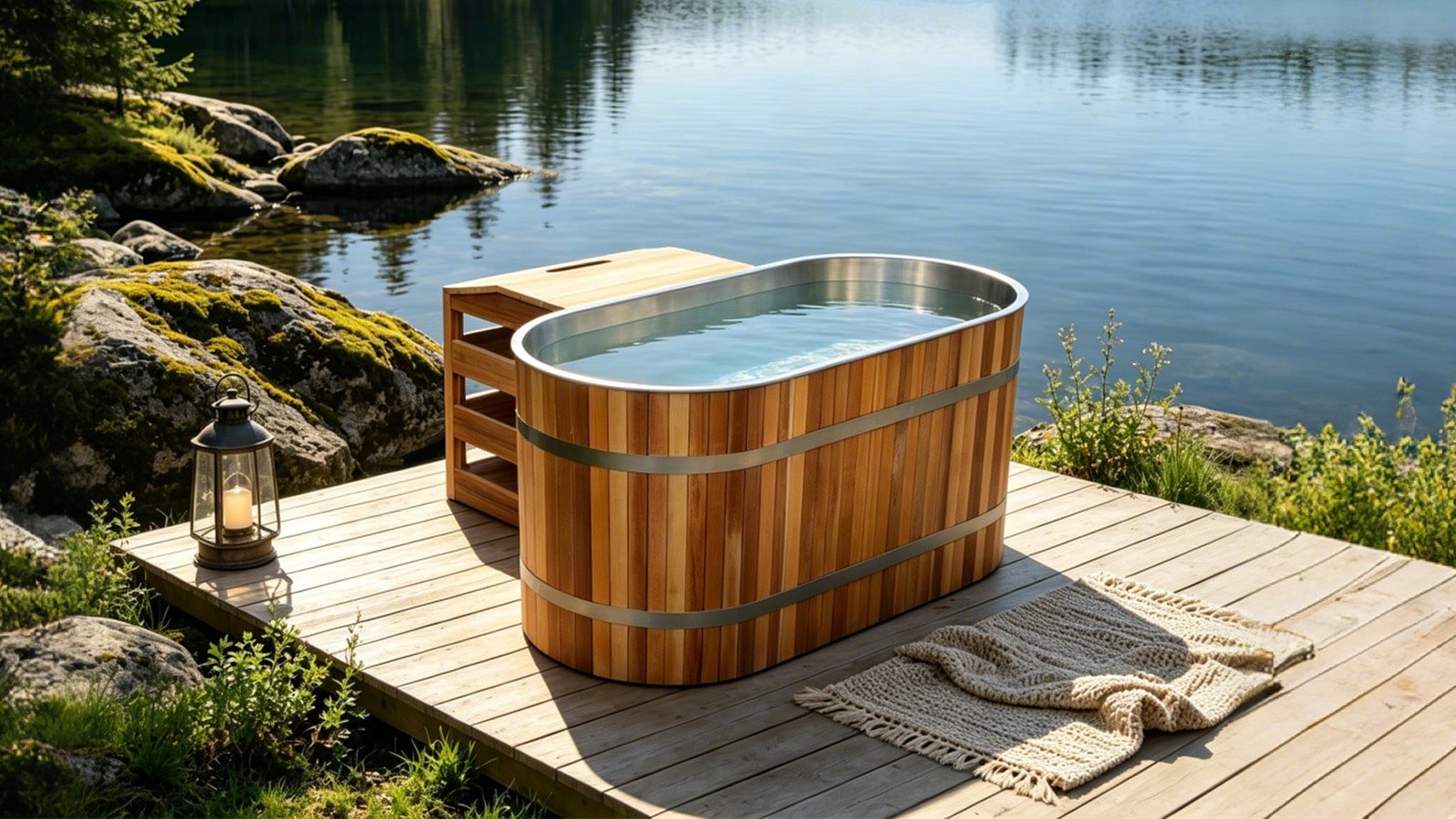

Vertical red cedar panels and stainless bands create the barrel appearance around the steel chamber. A matching wooden cabinet sits beside the tub and provides the step structure, equipment space and top-mounted digital control area shown in the supplied photographs.

Cedar is a natural material and requires care. Wipe standing water, inspect the finish and hardware, and protect the cedar cold plunge tub with chiller from unnecessary long-term weather exposure when the site is not designed for those conditions.

Built-In 1HP Cooling System

The current page lists a built-in 1HP chiller designed to maintain approximately 3–5°C with digital control. It also lists R32 refrigerant, an external filter cartridge, ozone disinfection, 110V and 220V regional versions, and optional WiFi app control.

These cooling details must be matched to the actual production version. Before quotation, confirm voltage and frequency, RV/RW model designation, cooling capacity, refrigerant charge, controller, WiFi option, filter, ozone, plug, certifications and destination market.

Foam Cover, Plumbing and Step Assembly

The product page lists a foam-insulated cover with handles, factory-installed plumbing and a wooden step/cabinet assembly. The cover helps reduce debris and heat gain when fitted correctly, while the cabinet provides access and supports the visible controller.

The page also lists a protective wooden shipping crate. Export packaging type, crate construction, included accessories and final gross dimensions should still be confirmed per order.

Installation and Electrical Planning

Because this cedar cold plunge tub with chiller combines water, refrigeration and electrical equipment, installation requires more planning than a passive tub. Place it on a level structure rated for the filled system, water and users, and provide controlled drainage, ventilation and service clearance.

• Confirm destination voltage, frequency, plug and dedicated circuit.
• Inspect the chamber, fittings, drain and plumbing before filling.
• Keep electrical connections protected from water.
• Allow ventilation and maintenance access around the cabinet.
• Follow the cleaning, filter and ozone maintenance schedule.
• Use suitable supervision and cold-water exposure procedures.

Residential and Commercial Applications

The WT-13 cedar cold plunge tub with chiller suits individual adult use in home recovery areas, gyms, sports facilities, rehabilitation centers, boutique spas, hotels and wellness retreats. The integrated configuration reduces separate equipment planning, but every project must confirm user fit, cooling load, daily sessions and recovery time.

OEM and Wholesale Project Support

OMNI supports distributors, wellness brands and commercial buyers with logo placement, approved cedar finishes, controller and voltage options, packaging, manuals, samples and bulk-order coordination. Structural, electrical or refrigeration changes require engineering review.

For a WT-13 cedar cold plunge tub with chiller quotation, send the destination country, quantity, voltage and frequency, intended users, installation environment, target temperature, WiFi requirement, logo request, packaging needs and delivery schedule.
